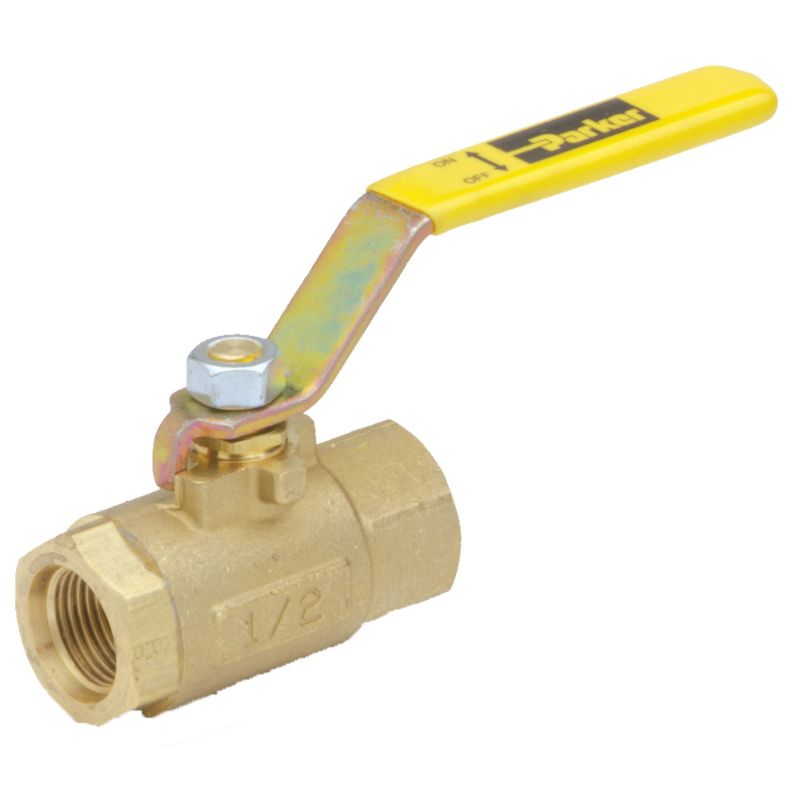

Parker V500P-16 - Industrial Brass Ball Valves

Name: Parker V500P-16 - Industrial Brass Ball Valves
SKU: V500P-16
Price: 61.17 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:

77 In Stock

Sumter, SC	18
Richmond, VA	14
Summerville, SC	12
Norfolk, VA	9
Knoxville, TN	5
Grovetown, GA	5
Jacksonville, FL	4
Knoxville, TN	4
Richmond, VA	2 (Pickup only)
Fayetteville, NC	2
Mooresville, NC	2

Partner Available:

404 In Stock

Brand Parker

Part No. V500P-16

$61.17/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	In-Line
Maximum Operating Temperature	350	Maximum Flow Rate	35
Orifice Size	.88	Connection Size	1
Seal Material	PTFE	Seat Material	PTFE
Maximum Operating Pressure	41	Operation Type	n/a
Ball Material	Chrome Plated Brass	Connection Type	NPT, Straight Thread Solder
Configuration	Female-Female PTF Ports	Mounting Type	Panel, In-Line
Body Material	Brass	Actuation Type	Manual
Product Type	Brass Series 500 Ball Valve	Division	Fluid System Connectors Division
Minimum Operating Temperature	0	Function	2-Way, Normally Closed, Normally Open
Handle Type	Lever	Connection 2 Thread Style	Female Pipe
Connection 1 Thread Size (inch)	1	Connection 2 Thread Size (inch)	1
Style	Female to Female	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	600	Handle	Steel Lever
Shape	In Line	Locking Mechanism	Non-Locking
Vented	No	Connection 1 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe
