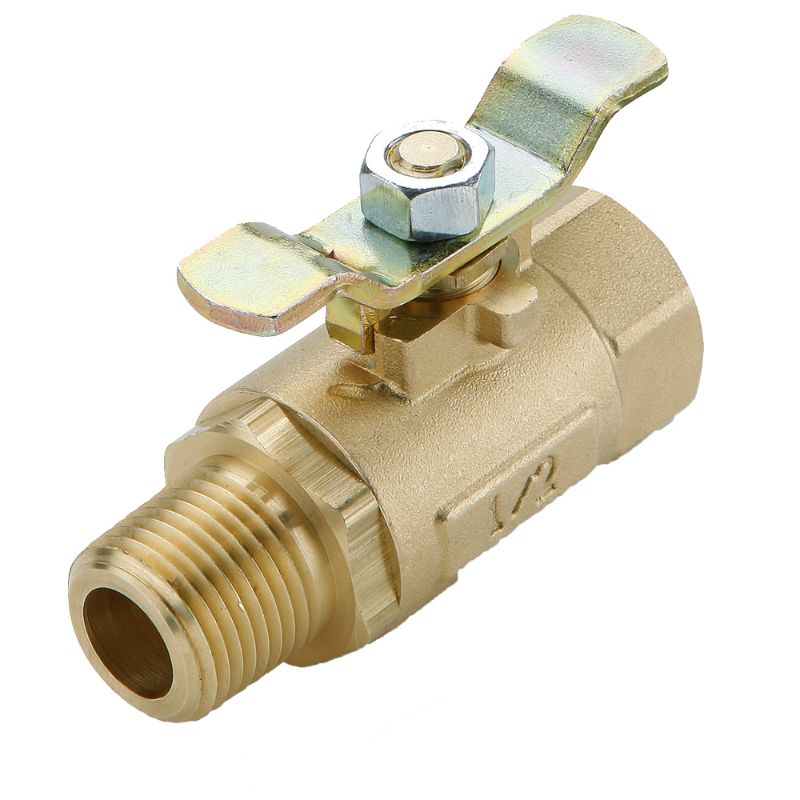

Parker V501P-8-04 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

AFP Availability:	Quote Required
Partner Available:	63 In Stock

Brand Parker

Part No. V501P-8-04

$35.20/each

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	350
Ball Material	Chrome Plated Brass	Body Material	Brass
Minimum Operating Temperature	0	Maximum Operating Pressure	41
Connection Type	NPT, Straight Thread Solder	Division	Fluid System Connectors Division
Seat Material	PTFE	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 2 Thread Style	Female Pipe
Style	Female/Male	Connection 1 Thread Style	Male Pipe
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Tee
