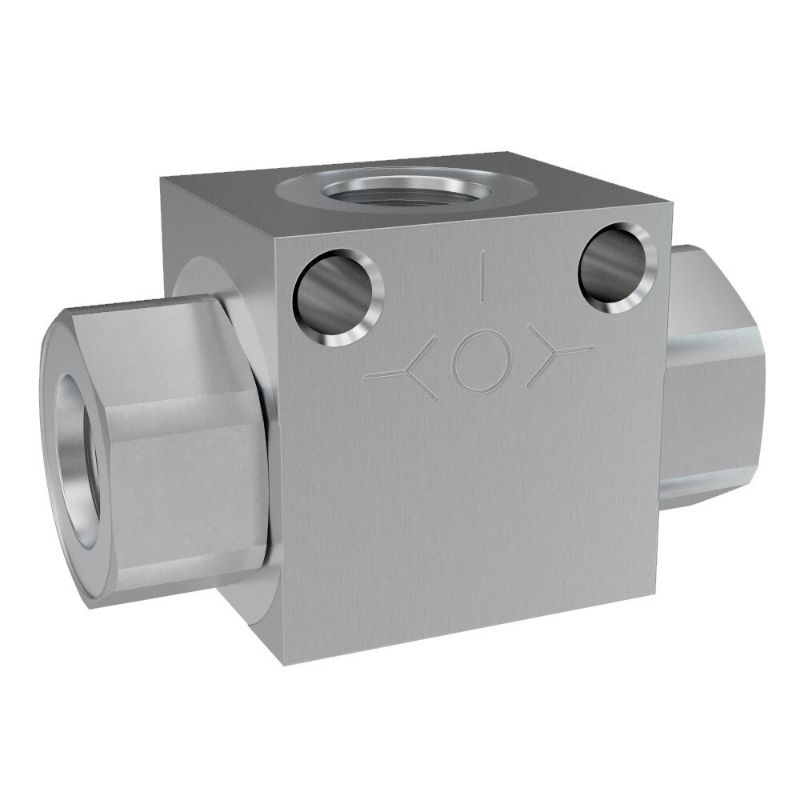

Parker ASH-06-2 - Inline Shuttle Valves

REGIONAL - Parker's ball type inline shuttle valves are plumbed external from manifolds and line bodies and are available in two flow size options of 11 lpm (3 gpm) or 22 lpm (6 gpm), and pressures up to 207 bar (3000 psi).

Availability:	Quote Required
Partner Available:	48 In Stock

Brand Parker

Part No. ASH-06-2

$57.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Actuation Type	Pressure Sensing	Division	Hydraulic Systems Division
Configuration	Inline	Maximum Inlet Pressure Rating	207 bar
Seal Material	Nitrile	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Operation Type	Automatic	Minimum Operating Temperature	-30 °F
Filter Efficiency Rating	ISO 4406 18/16/13	Maximum Operating Pressure	3000 psi
Flow Rate	22 L/min	Operating Temperature	-34 to 121 °C
Function	Shuttle	Weight	1 lb
For Fluid Type	Synthetic Hydraulic Fluids	Leak Rate	5
Maximum Flow Rate	6 Gal/min	Division	Hydraulic Cartridge Systems Division
Body Material	Steel	Flow Rate	6 GAL/MIN, 22 L/MIN
