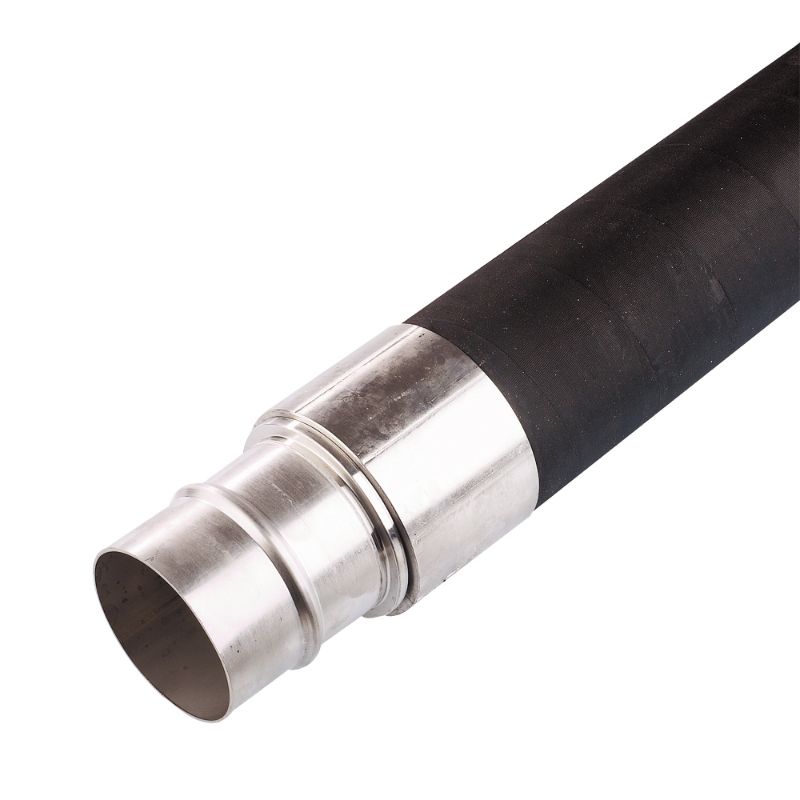

Parker FP01 L3 02 - Transair® Flexible Hose for Aluminum Pipe

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FP01 L3 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Connection Type	Pipe	Minimum Bend Radius	18,000 inch
Inside Diameter	100 mm	Product Style	Hose Assemblies
Minimum Operating Temperature	-20 °C	Brand	Transair
Shape	Straigth	Weight	28,220 lb
Body Material	Spiral Steel Wire (Reinforcement)	Division	Low Pressure Connectors Europe Division
Maximum Operating Pressure	16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html	Vacuum Pressure Rating	n/a Please consult us
Product Type	Pneumatic Hose	Length	6' 6'' ft
Quantity per Box	1.0	Color	Black
Outside Diameter	100 mm	Flow Rate	n/a
Maximum Operating Temperature	140 °F	Connection Size	100 mm
Configuration	Pipe to Pipe	Division	Low Pressure Connectors Europe Division
Industry	General Industrial	Specifications Met	EN 755.2
Application	In Plant Pneumatic	Assembly Time	0.25 Hours
Technology	Fluid & Gas Handling	Pipe O.D. (mm)	101
Length (m)	2.00	Length (ft)	6ft 6in
Pipe O.D. (inch)	4
