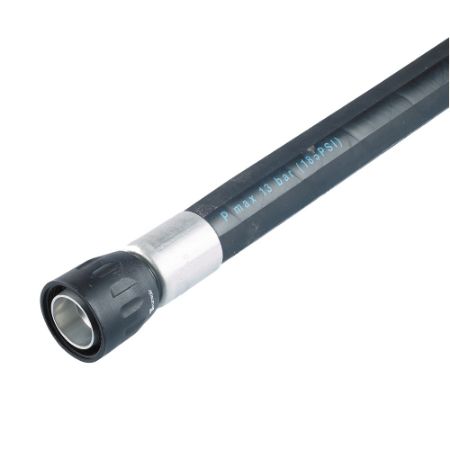

Transair® Flexible Hose for Aluminum Pipe
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Transair Flexible Hoses are engineered for easy installation in tight spaces. Due to the tight bend radius, a flexible hose can be installed in tight, close quarter areas. The use of a flexible hose can eliminate most layout constraints and reduce the mechanical stress on a compressed air system. These hoses are commonly used to route the compressed air line around an obstacle, preventing pressure drop that comes from excessive use of elbows.
All flexible hoses come in fixed lengths with attached ends to eliminate the need to cut and crimp the hose. The SBR cover is resistant to most mineral and synthetic compressor oils. All hoses meet ISO 8030 for fire resistance. Transair flexible hoses are rated for use in compressed air systems only. Parker Hannifin warrants all Transair components to be free of defects in material and workmanship for 10 years from the date of installation
To prevent serious bodily harm or property damage, an anti-whiplash strap (pn: 6698 99 03) needs to be installed along with the flexible hose. Parker Transair suggests installing straps on either side of the connection to prevent the hose from whipping in the event of a blow-off.
Markets:
• Automotive Assembly
• Food & Beverage
• Packaging
• Industrial Plants
• Aerospace
Features/Benefits:
• Quick connection technology
• Modular and reusable
• Optimum flow rate
• Faster installation
• Lower installation costs
• Immediate pressurization
• Lightweight
• 10-year warranty
Applications
• Compressed Air
Maximum Working Pressure:
• 1/2” to 4”: 232psi (15,9bar) when the system is operated between -4 to +113 F (-20 to +46.1 C)
• 6”: 188psi (12,9 bar) when the system is operated between -4 to +140 F (-20 to + 60 C)
Maximum Working Temperature (1/2” to 4”):
• 185°F when system is operated at 101psi or lower
• 158°F when the system is operated at 145psi or lower
• 140°F when the system is operated at 188psi or lower
• 115°F when the system is operated at 232psi or lower
| Action | Part No. | Availability | Partner Available | Price | UOM | Brand | Division | Minimum Operating Temperature | Industry | Technology | Application | Division | Quantity per Box | Connection Type | Color | Shape | Length | Weight | Flow Rate | Product Type | Assembly Time | Body Material | Configuration | Product Style | Connection Size | Inside Diameter | Outside Diameter | Specifications Met | Minimum Bend Radius | Vacuum Pressure Rating | Maximum Operating Pressure | Maximum Operating Temperature | Length (m) | Length (ft) | Pipe O.D. (mm) | Pipe O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1001E25 00 01 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 1' 10'' ft | 0,794 kg | n/a | Pneumatic Hose | 0.04 Hours | SBR (Hose & Coating) | Port to Port | Hose Assemblies | 25 mm | 25 mm | 1 inch | ISO 8573 (Air Quality) | 100 mm | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 140 °F | 0.57 | 1ft 10in | 25 | 1 | |||
| 1001E25 00 03 | Quote Required | TBD | Transair | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 4' 11'' ft | 3,280 lb | n/a | Pneumatic Hose | 0.04 Hours | Spiral Steel Wire (Reinforcement) | Port to Port | Hose Assemblies | 25 mm | 25 mm | 1 inch | ASME B31.1 - 31.9 | 4,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 1.50 | 4ft 11in | 25 | 1 | |||
| 1001E25 00 04 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 2,000 m | 2,080 kg | n/a | Pneumatic Hose | 0.04 Hours | SBR (Hose & Coating) | Port to Port | Hose Assemblies | 25 mm | 25 mm | 25 mm | EN 573.3 | 4,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 2.00 | 6ft 6in | 25 | 1 | |||
| 1001E40 00 02 | Quote Required | TBD | Parker | Fluid System Connectors Division | -4 °F | General Industrial | Pneumatics | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 1,150 m | 4,570 lb | n/a | Pneumatic Hose | 0.04 Hours | Spiral Steel Wire (Reinforcement) | Port to Port | Hose Assemblies | 40 mm | 40 mm | 40 mm | EN 755.8 | 400 mm | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 1.15 | 3ft 9in | 40 | 1-1/2 | |||
| 1001E40 00 04 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 2,000 m | 3,380 kg | n/a | Pneumatic Hose | 0.04 Hours | SBR (Hose & Coating) | Port to Port | Hose Assemblies | 40 mm | 40 mm | 40 mm | ISO 8573 (Air Quality) | 400 mm | n/a Please consult us | 232 psi | 140 °F | 2.00 | 6ft 6in | 40 | 1-1/2 | |||
| 1001E40 00 05 | Quote Required | TBD | Transair | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Pneumatics | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Male Thread | Black | Straigth | 9' 10'' ft | 8,820 lb | n/a | Pneumatic Hose | 0.04 Hours | Spiral Steel Wire (Reinforcement) | Port to Port | Hose Assemblies | 40 mm | 40 mm | 1-1/2 inch | EN 573.3 | 16,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 140 °F | 3.00 | 9ft 10in | 40 | 1-1/2 | |||
| 1001E50 00 04 | Quote Required | $1,372.61 | EA | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Fluid System Connectors Division | 1.0 | Pipe | Black | Straigth | 2,000 m | 9,500 lb | n/a | Pneumatic Hose | 0.1 Hours | NBR (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 50 mm | 50 mm | 50 mm | EN 755.8 | 280 mm | n/a Please consult us | 232 psi | 60 °C | 2.00 | 6in 6ft | 50 | 2 | ||
| 1001E50 00 09 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Pneumatics | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Black | Straigth | 4' 3'' ft | 3,400 kg | n/a | Pneumatic Hose | 0.1 Hours | NBR (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 50 mm | 50 mm | 2.000 inch | EN 573.3 | 11,000 inch | n/a Please consult us | 232 psi | 140 °F | 1.30 | 4ft 3in | 50 | 2 | |||
| 1001E63 00 05 | Quote Required | TBD | Parker | Fluid System Connectors Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Fluid System Connectors Division | 1.0 | Pipe | Black | Straigth | 9' 10'' ft | 7,500 kg | n/a | Pneumatic Hose | 0.1 Hours | Spiral Steel Wire (Reinforcement) | Pipe to Pipe | Hose Assemblies | 63 mm | 50 mm | 63 mm | CE | 26,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 3.00 | 9ft 10in | 63 | 2-1/2 | |||
| 1001E63 00 06 | Quote Required | TBD | Parker | Fluid System Connectors Division | -20 °C | General Industrial | Pneumatics | In Plant Pneumatic | Fluid System Connectors Division | 1.0 | Pipe | Black | Straigth | 13' 1'' ft | 11,000 kg | n/a | Pneumatic Hose | 0.1 Hours | Synthetic Braiding (Reinforcement) | Pipe to Pipe | Hose Assemblies | 63 mm | 63 mm | 63 mm | EN 755.8 | 25,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 140 °F | 3.96 | 13ft 1in | 63 | 2-1/2 | |||
| 1001E63 00 08 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Black | Straigth | 1,400 m | 3,675 kg | n/a | Pneumatic Hose | 0.1 Hours | Spiral Steel Wire (Reinforcement) | Pipe to Pipe | Hose Assemblies | 63 mm | 63 mm | 63 mm | EN 755.8 | 12,000 inch | n/a Please consult us | 232 psi | 60 °C | 1.40 | 4ft 7in | 63 | 2-1/2 | |||
| FP01 L1 01 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -4 °F | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Fluid System Connectors Division | 1.0 | Pipe | Black | Straigth | 1,500 m | 4,000 kg | n/a | Pneumatic Hose | 0.22 Hours | SBR (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 76 mm | 76 mm | 3 inch | ISO 9001 | 14,000 inch | n/a Please consult us | 232 psi | 60 °C | 1.50 | 4ft 11in | 76 | 3 | |||
| FP01 L1 02 | Quote Required | TBD | Parker | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Black | Straigth | 6' 6'' ft | 15,210 lb | n/a | Pneumatic Hose | 0.22 Hours | SBR (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 76 mm | 76 mm | 3 inch | CE | 350 mm | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 2.00 | 6ft 6in | 76 | 3 | |||
| FP01 L3 02 | Quote Required | TBD | Transair | Low Pressure Connectors Europe Division | -20 °C | General Industrial | Fluid & Gas Handling | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Black | Straigth | 6' 6'' ft | 28,220 lb | n/a | Pneumatic Hose | 0.25 Hours | Spiral Steel Wire (Reinforcement) | Pipe to Pipe | Hose Assemblies | 100 mm | 100 mm | 100 mm | EN 755.2 | 18,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 140 °F | 2.00 | 6ft 6in | 101 | 4 | |||
| FP01 L3 03 | Quote Required | TBD | Parker | Fluid System Connectors Division | -4 °F | General Industrial | Pneumatics | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Black | Straigth | 3,000 m | 19,900 kg | n/a | Pneumatic Hose | 0.25 Hours | SBR (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 100 mm | 100 mm | 4 inch | EN 755.8 | 18,000 inch | n/a Please consult us | 16 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 3.00 | 9ft 10in | 101 | 4 | |||
| FX01 L8 02 | Quote Required | TBD | Transair | Fluid System Connectors Division | -20 °C | General Industrial | Pneumatics | In Plant Pneumatic | Low Pressure Connectors Europe Division | 1.0 | Pipe | Silver | Straigth | 10' 6'' ft | 42,000 kg | n/a | Pneumatic Hose | 0.1 Hours | Nitrile Butadiene Rubber (NBR)/Styrene Butadiene Rubber (SBR), Black (Hose & Coating) | Pipe to Pipe | Hose Assemblies | 168 mm | 150 mm | 168 mm | EN 573.3 | 35,000 inch | n/a Please consult us | 13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html | 60 °C | 3.2 | 10ft 6in | 168 | 6 |
