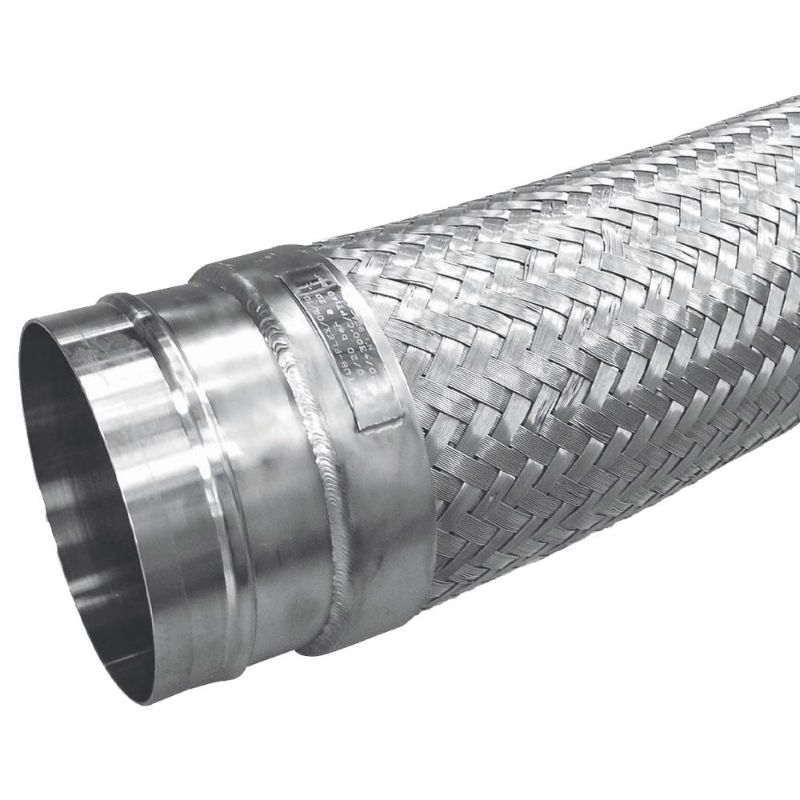

Parker FX01 L8 02 - Transair® Flexible Hose for Aluminum Pipe

Transair Flexible Hoses are designed to install quickly in areas where space is at a premium. These hoses are used to route compressed air line around obstacles, preventing pressure drop caused by excess elbows.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. FX01 L8 02

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Shape	Straigth	Brand	Transair
Outside Diameter	168 mm	Assembly Time	0.1 Hours
Color	Silver	Maximum Operating Pressure	13 bar 232 PSI (-4°F to +113°F)/16 bar (-20°C to 45°C) up to 100 mm 188 PSI (-4° to +140°F)/13 bar (-20°C to 60°C) up to 168 mm For Canada, Please refer to https://www.parker.com/ca/en/crn/transair.html
Technology	Pneumatics	Application	In Plant Pneumatic
Vacuum Pressure Rating	n/a Please consult us	Minimum Bend Radius	35,000 inch
Product Type	Pneumatic Hose	Weight	42,000 kg
Maximum Operating Temperature	60 °C	Division	Fluid System Connectors Division
Product Style	Hose Assemblies	Minimum Operating Temperature	-20 °C
Connection Type	Pipe	Connection Size	168 mm
Flow Rate	n/a	Specifications Met	EN 573.3
Length	10' 6'' ft	Industry	General Industrial
Configuration	Pipe to Pipe	Division	Low Pressure Connectors Europe Division
Quantity per Box	1.0	Inside Diameter	150 mm
Body Material	Nitrile Butadiene Rubber (NBR)/Styrene Butadiene Rubber (SBR), Black (Hose & Coating)	Length (m)	3.2
Length (ft)	10ft 6in	Pipe O.D. (mm)	168
Pipe O.D. (inch)	6
