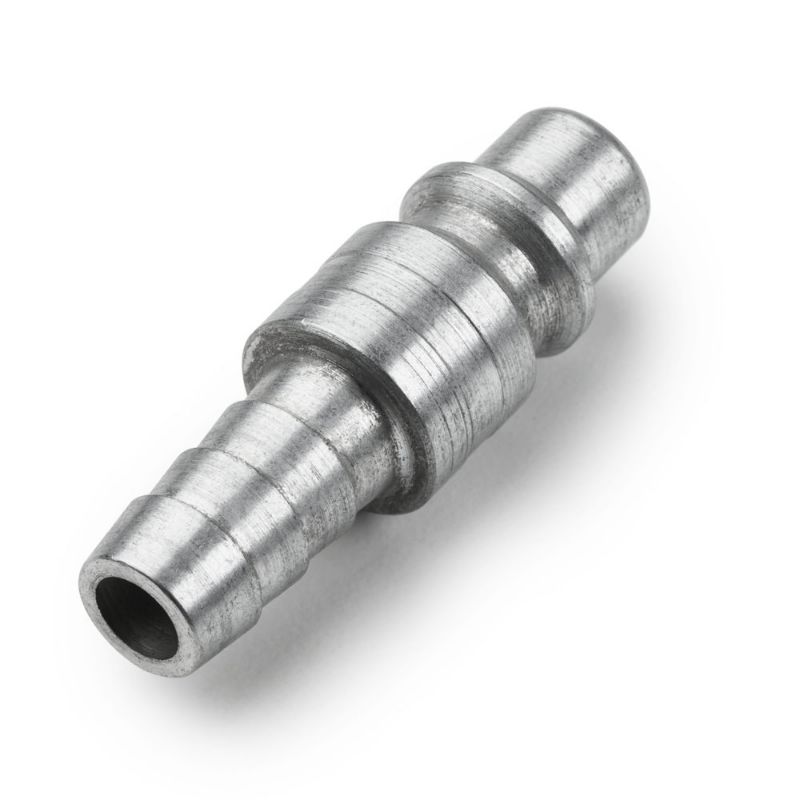

Parker 9085 23 60 - Transair® Safety Couplers and Plugs

Transair® safety air couplers are designed for frequent connection and disconnection. The two-turn release system vents the downstream pressure, preventing serious injury.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 9085 23 60

$3.82

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Quantity per Box	10.0	Assembly Time	0.15 Hours
Minimum Operating Temperature	-4 °F	Division	Fluid System Connectors Division
Materials of Construction	Brass	Division	Low Pressure Connectors Europe Division
Weight	0.02 kg	Application	Inert Gases
Maximum Operating Temperature	140 °F	Maximum Operating Pressure	15.9 bar
Flow Rate	47 SCFM	Body Material	Brass
Body Size	1/4 inch	Coupling Half	Plug With Hosetail
Connection Size	3/8 INCH\|9,53 MM	Industry Standards	ISO 4414, series B
