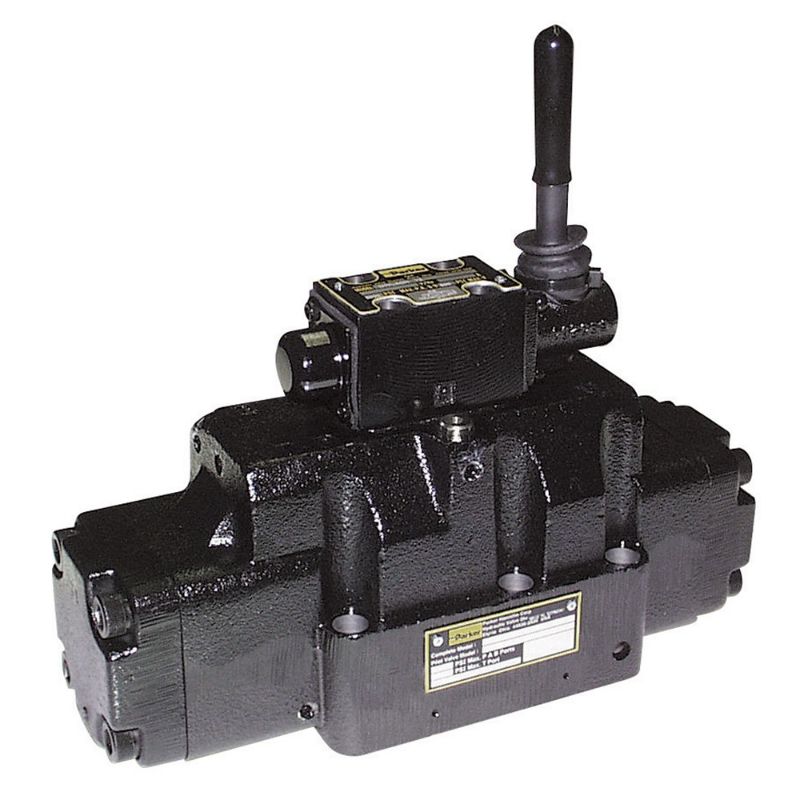

Parker D81VL001C1N - Lever Operated Directional Control Valve - D81VL Series

Parker’s D81VL directional control valves are 5-chamber, lever operated valves

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D81VL001C1N

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Maximum Flow Rate	160	Seal Material	Nitrile
Spool Position	Double Operator, 3 position, spring centered	Options	n/a
Pilot Inlet / Drain Locations	Int. Pilot/Ext. Drain	Spool Code	4-way, 3 position; All Ports Blocked
Minimum Operating Temperature	-4	Mounting Type	Subplate
Maximum Operating Temperature	+140	Maximum Operating Pressure	5000
Actuation Type	Hydraulic Pressure	Valve Type	Lever Operated Directional Control Valve
Weight	26.7	Division	Hydraulic Valve Systems Division
Size	NFPA D08, CETOP 8, NG25	Body Material	Grey Iron

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D81VL Series (PDF)
