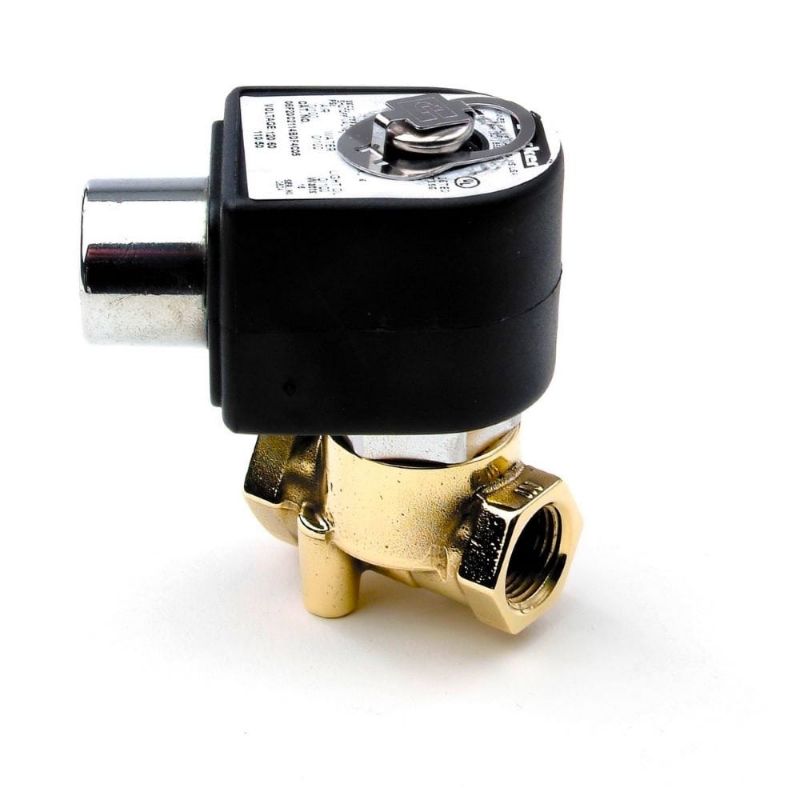

Parker 04F25C2122C3FPH80 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F25C2122C3FPH80

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Port Size	1/4 inch	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Closed (NC)
Coil Type	1/2" Conduit, 18" Leads	Valve Type	2-Way
Input Voltage	24.0 VDC	Seal Material	NBR
Actuation Type	Diaphragm	Orifice 1 Size	11/32 inch
Orifice 2 Size	n/a	Product Series	Gold Ring
Number of Ports	2	Power Consumption	11.5 W (DC)
Flow Coefficient 1	1.2 Cv	Flow Coefficient 2	n/a
Coil Specifications Met	NEMA 4X	Maximum Fluid Temperature	150 °F
Minimum Fluid Temperature	0 °F	Maximum Pressure Differential	300 psi (DC)
Minimum Pressure Differential	3 psi	Body Material	BRASS
Coil Type	1/2" Conduit, 18" Leads	Voltage (V)	24 VDC
Power (Watts)	11.5 Watts (DC)	Seal Material	NBR
Flow Factor 1 (Cv)	1.2	Orifice 1 Size (inch)	11/32
