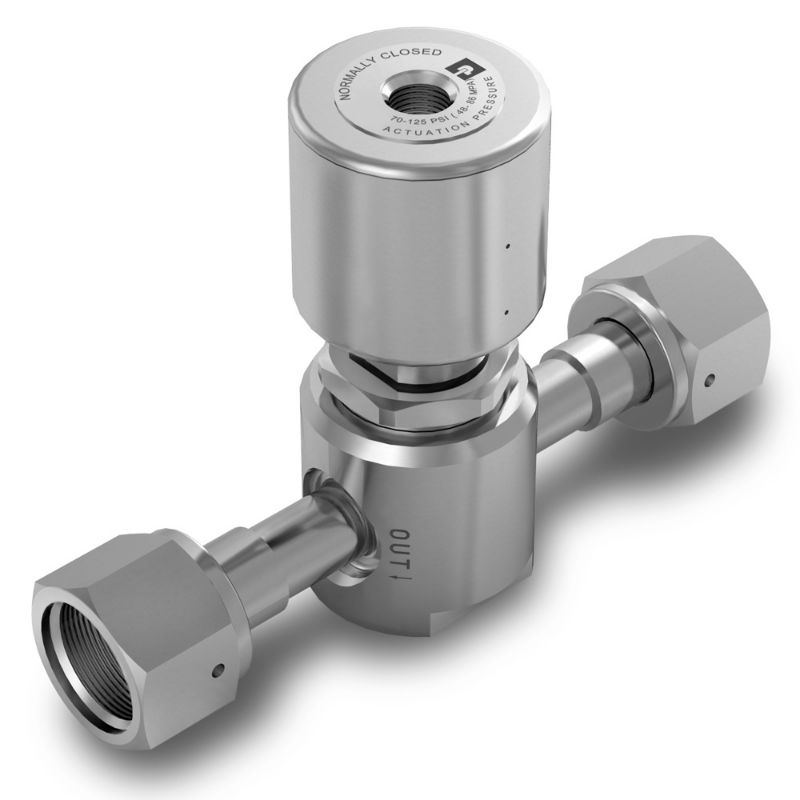

Parker 870ISFS8MM - Ultrahigh-purity (UHP) High-flow Diaphragm Valve – 870 Series

The 870 Series Diaphragm Valve offers long life and exceptional leak integrity. It can be manually or air-operated and is ideally suited for use in high-flow, high-purity applications (maximum flow capacity = 0.70 Cv).

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 870ISFS8MM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Burst Pressure	750 Psig (52 barg)	Maximum Operating Temperature	66
Seat Material	PCTFE	External Leak Rate	≤ 2 x 10-10 Scc/sec He
Division	Veriflo Division	Weight	1.44
Actuator Housing Material	Anodized Aluminum	Diaphragm Material	Elgiloy
Air Inlet Connection Size	1/8" NPT	Volume	0.59
Flow Rate	0.7	Maximum Inlet Pressure Rating	250 psig (17.22 barg) (Manual)
Minimum Operating Temperature	-40	Body Material	VeriClean™ Stainless Steel 316L
Internal Leak Rate	≤ 1 x 10-9 Scc/sec He	Cap Material	Stainless Steel 17-4 PH
Nut Material	Stainless Steel 17-4 PH	Minimum Inlet Pressure Rating	Vacuum
Surface Finish	10 Micro inch	Actuation Pressure	70 to 125
Proof Pressure	375.0	Actuation	Indicating Handwheel
Inlet Port Connection Type	1/2” Male Face Seal	Outlet Port Connection Type	1/2” Male Face Seal
