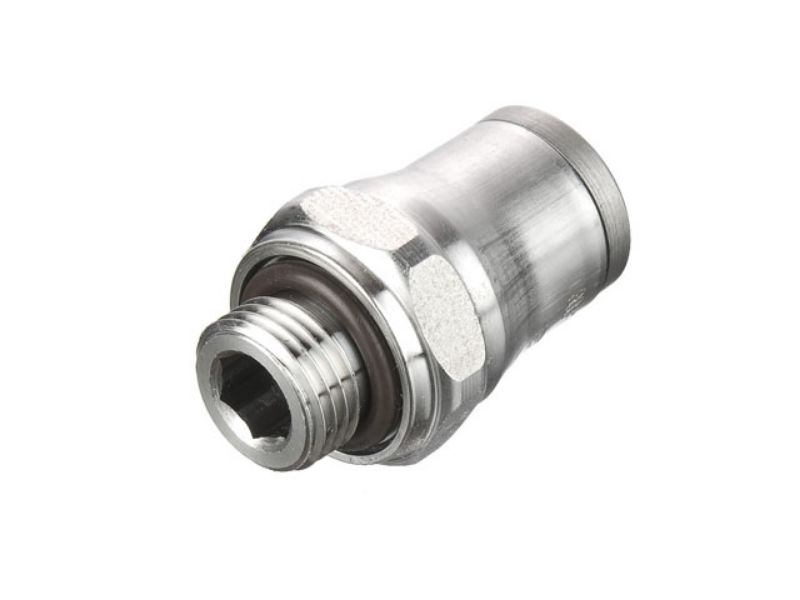

Parker 3801 04 10 - Legris LF3800 Series 3801 - Metric-BSPP/Metric

Metric-BSPP/Metric Male Connector - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3801 04 10

$36.72

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Thread 1	1/8 BSPP	Outer Diameter 1	4 mm
Parker Group	Fluid Connector	Material	Stainless Steel
Parker Division	Fluid Systems Connector (Brass Products)	Configuration Type	Tube to Male
Thread 1 Type	BSPP	Operating Temperature	-4˚ to +302˚F
Inch/Metric	Metric-BSPP/Metric	Outer Diameter 1 Inch/mm	mm
Pressure Range	7 to 290 psi	Material - Seal	FKM Fluoroelastomer
Trade Name	Legris	Thread 1	1/8 BSPP
Configuration Sub-Type	Male Connector	Outer Diameter 1	4 mm
Series	Legris LF3800

Product resources

Legris Push-in Fittings (PDF)
