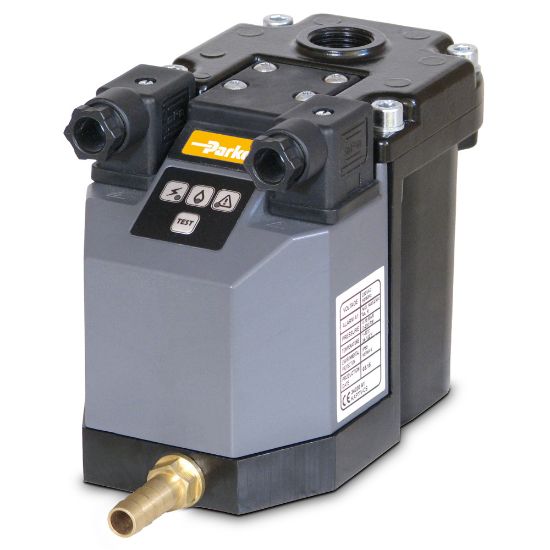

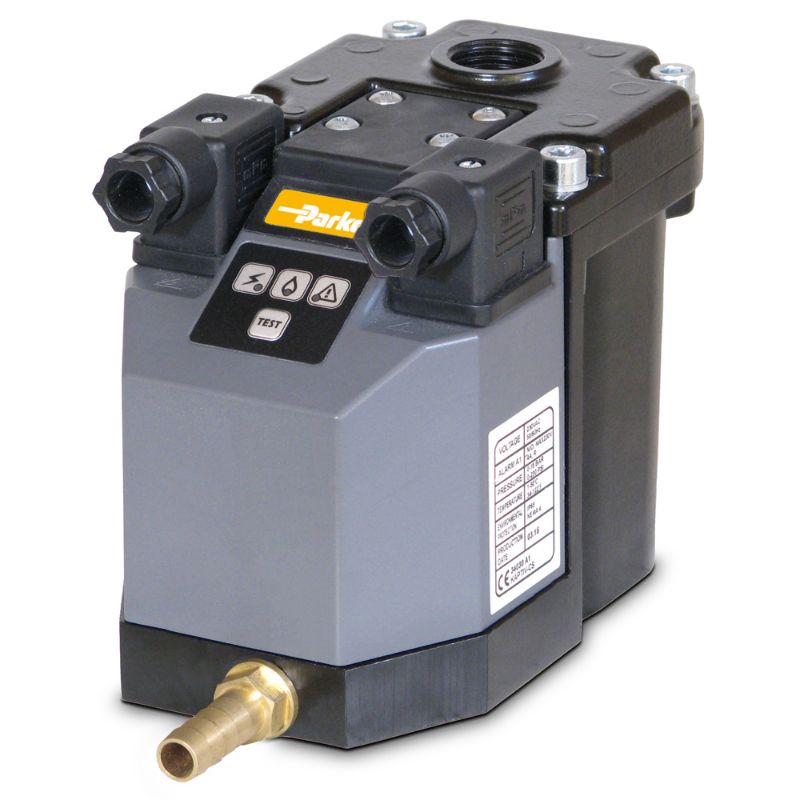

Parker ED4100/50-G24D - ED4100 Series Electronic Level Sensing Condensate Drains (up to 50 bar g)

Automatic zero air loss level sensing condensate drains for industrial compressed air treatment applications up to 50 barg.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. ED4100/50-G24D

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Product Style	Electronic Level Sensing Drain	Technology	Filtration
Operating Temperature	2 to 35 °C	Flow Rate	12000.0 m3/hour (Aftercooler, Air Receiver)
Industry	Industrial Manufacturing Equipment<br/>Food & Beverage<br/>Automotive<br/>Electronics<br/>Pharmaceuticals	Depth	3.4 inch
Height	116.0 mm	Width	7 inch
Operating Pressure	232 to 725 psig Maximum	Brand	Parker
Product Series	ED4100	Division	Gas Separation and Filtration Division EMEA
Weight	1.9 kg	Connection Type	BSPP or NPT
Specifications Met	PED 97/23/EC<br/>EMC 2004/108/EU<br/>LVD 2006/95/EU	Product Type	Condensate Drain
Ingress Protection Rating	IP65	Materials of Construction	Condensate Housing: Aluminum, Anodized<br/>Housing lid with sensor: PBT<br/>Housing Seals: NBR<br/>2/2 Way Valve: Stainless Steel / Bronze<br/>Valve Seal: FPM<br/>Dirt Filter: Stainless Steel<br/>Locking screws, outlet spout: Plated Brass<br/>
Division	Gas Separation and Filtration Division EMEA	Application	Compressed Air Applications
Electrical Requirements	24 VDC	Flow Rate	Filter: 60000 m³/h (35316 cfm)
Port Size	Inlet: ½ inch Outlet: ¼ inch
