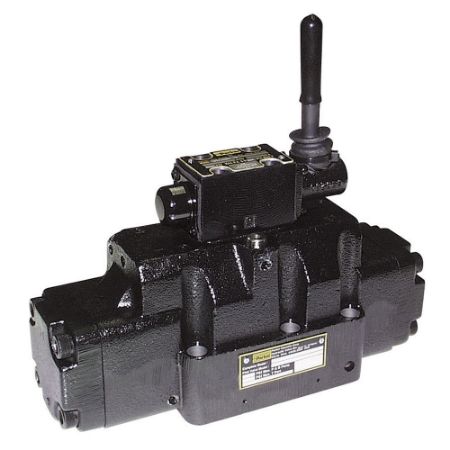

Lever Operated Directional Control Valve - D81VL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s D81VL directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.
Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
Read More...Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities
Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life
Applications:
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | Maximum Flow Rate | Seal Material | Spool Position | Options | Pilot Inlet / Drain Locations | Spool Code | Minimum Operating Temperature | Mounting Type | Maximum Operating Temperature | Maximum Operating Pressure | Actuation Type | Valve Type | Weight | Division | Size | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| D81VL001C1N | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | n/a | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1N60 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Pilot Choke - Meter in | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1N7 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Pilot Choke - Meter out | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1N8 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'B' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1N89 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'A' & 'B' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1N9 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'A' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | n/a | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V60 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Pilot Choke - Meter in | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V7 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Pilot Choke - Meter out | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V8 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Stroke Adj. 'B' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V89 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Stroke Adj. 'A' & 'B' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C1V9 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Stroke Adj. 'A' End | Int. Pilot/Ext. Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | n/a | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N60 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Pilot Choke - Meter in | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N7 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Pilot Choke - Meter out | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N8 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'B' End | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N89 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'A' & 'B' End | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2N9 | Quote Required | TBD | 160 | Nitrile | Double Operator, 3 position, spring centered | Stroke Adj. 'A' End | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2V | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | n/a | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron | ||
| D81VL001C2V60 | Quote Required | TBD | 160 | Fluorocarbon | Double Operator, 3 position, spring centered | Pilot Choke - Meter in | Ext. Pilot/Ext Drain | 4-way, 3 position; All Ports Blocked | -4 | Subplate | +140 | 5000 | Hydraulic Pressure | Lever Operated Directional Control Valve | 26.7 | Hydraulic Valve Systems Division | NFPA D08, CETOP 8, NG25 | Grey Iron |
