Parker 940506Q - Par Fit Replacement Elements - DIN Series

The Parker DIN Element Series combines the most advanced filter technology with universal availability and maximum affordability. Specifying Parker DIN elements mean.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 940506Q

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Hydraulic & Industrial Process Filtration Division EMEA	Seal Material	Fluoroelastomer
Length	159	Media	fibreglass
Maximum Pressure Differential	> 10 bar (ISO 2941)	Media	Fiberglass
Seal Material	Fluoroelastomer	Filter Efficiency Rating	β 22(c) ≥ 1000
Length	159 mm	Size	1
Flow Rate	63 l/min	UOM	EA
Collapse Pressure (psi)	150 psi	Pkg Qty	1
Efficiency βx(C) ≥ 1000	12 µ	Collapse Pressure (bar)	10.3 bar
Media	10 Micron Absolute	Seals	FPM: Fluoroelastomer
Media Type	Microglass	Efficiency βx(C) ≥ 200	10 µ

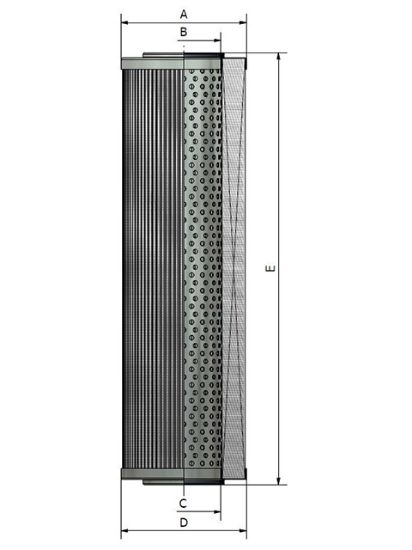

C Dimension	1.268 in (32.2 mm)	Seals	FPM: Fluoroelastomer
Efficiency βx(C) ≥ 1000	12 µ	Efficiency βx(C) ≥ 200	10 µ
Collapse Pressure (psi)	150 psi	Collapse Pressure (bar)	10.3 bar
Glue Side Seam Adhesive	Polyurethane	Parker Group	Filtration
Media Composition Detail	Multilayer fiberglass with epoxy coated mesh on both sides	D Dimension	2.283 in (58 mm)
Media	10 Micron Absolute	Bottom Endcap Material	Mild steel tin plated
Competitor	INTERNORMEN	A Dimension	2.283 in (58 mm)
Media Type	Microglass	Top Endcap Material	Mild steel tin plated
Parker Division	Hydraulic Filter	Glue Endcaps Adhesive	Polyurethane
B Dimension	1.268 in (32.2 mm)	Series	ParFit
E Dimension	6.26 in (159 mm)	Inner Support Cylinder Material	Mild steel tin plated
