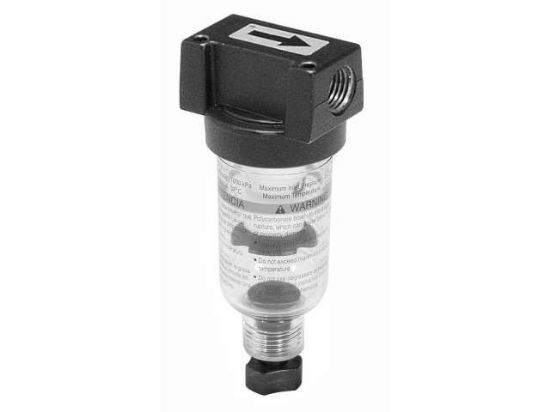

Parker 10F17E - 10F Mini General Industrial Coalescing Filter

10F Mini Prep-Air II Coalescing Filter

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10F17E

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	1
Port	1/4 NPT	Bowl Type	Metal without sight gauge
Operating Temperature	0°C to 80°C (32°F to 175°F)	Maximum Flow	20 SCFM (9 dm3/s)
Supply Pressure Range	15 to 250 PSIG (1.0 to 17.2 bar)	Filter Drain Type	Auto Pulse
Element Rating	0.01 micron	Parker Group	Automation
Parker Division	Pneumatic	Operating Temperature	0°C to 80°C (32°F to 175°F)
Trade Name	Prep-Air II	Air Preparation Series	General Industrial
Port	1/4 NPT	Port Inch/BSP	NPT
Bowl Type	Metal without sight gauge	Flow Range	< 25 SCFM
Supply Pressure Range	15 to 250 PSIG (1.0 to 17.2 bar)	Series	10F Mini
Air Preparation Product Type	Coalescing Filter	Filter Drain Type	Auto Pulse
Element Rating	0.01 micron
