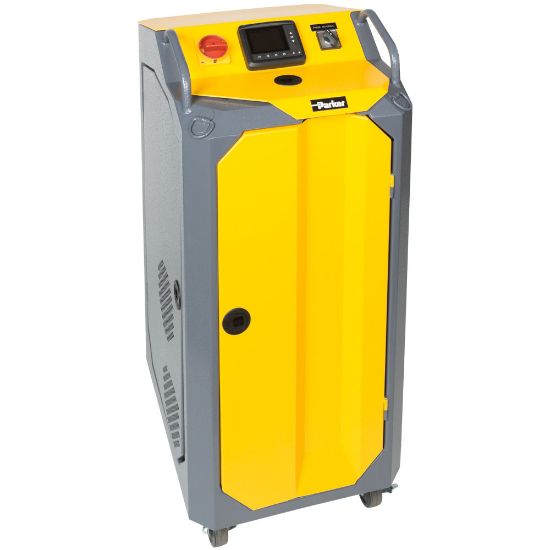

Parker 943118 - Sentinel Compact Oil Purifier

The Parker Sentinel features automatic operation, which minimizes energy consumption while extending the usable life of fluids. This compact vacuum dehydrator provides flexibility to the user allowing for operation in areas where space is at a premium.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 943118

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Electrical Requirements	230VAC, 3P, 60Hz	Division	Engine Mobile Hydraulic and Fuel Filtration Division
Weight	440 lb	Maximum Kinematic Viscosity	2150 SUS
Seal Material	Fluorocarbon	Maximum Fluid Temperature	82.2 °C
Maximum Ambient Temperature	120 °F	Outlet Port Type	3/4" JIC 12 12 (male)
Minimum Fluid Temperature	-40 °F	Flow Rate	5 Gal/min
Filter Element Type	05QE Ecoglass	Inlet Port Size	3/4 inch
Minimum Operating Capacity	5 gal	Electrical Requirements	230VAC, 3P, 60Hz
