*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

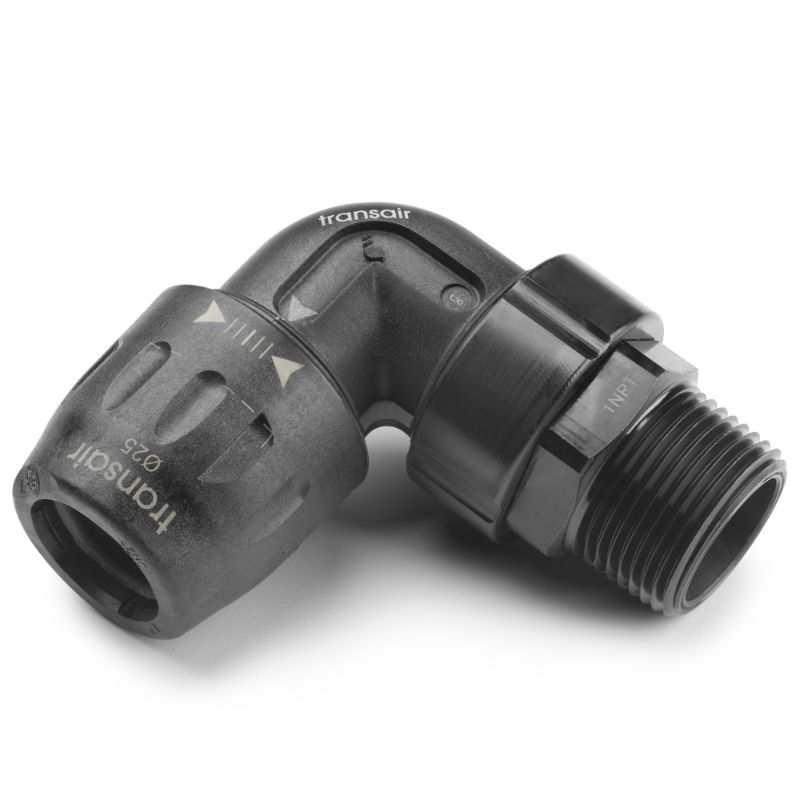

Parker 6609 17 22 - Transair® Fittings for Aluminum Pipe

Transair Fittings install fast and with minimal tooling required. All Transair fittings are designed to securely fit around Transair aluminum pipe, increasing system efficiency and preventing compressed air leaks.

Availability:	Quote Required
Partner Available:	122 In Stock

Brand Parker

Part No. 6609 17 22

$49.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Brand	Parker
Product Type	Compressed Air Piping	Maximum Operating Temperature	85 °C
Minimum Operating Temperature	-20 °C	Industry	General Industrial
Division	Fluid System Connectors Division	Division	Low Pressure Connectors Europe Division
Application	Industrial Gas	Technology	Pneumatics
Specifications Met	EN 755.2	Vacuum Pressure Rating	0.03 inch-Hg
Maximum Operating Pressure	232 psi	For Fluid Type	Industrial Gas
Connection 1 Type	Pipe	Quantity per Box	1
Shape	Elbow 90°	Connection 2 Size	1/2 inch
Body Material	Technical Polymer	Weight	1.131 kg
Assembly Time	0.17 Hours	Configuration	Pipe to Port
Product Style	Stud Fitting	Connection 1 Size	16.5 mm
Connection 2 Type	Male NPT	Pipe O.D. (mm)	16.5
Pipe O.D. (inch)	1/2	Silicone Free	Yes
Connection Thread Size (inch)	1/2	Product Style	Male NPT
Pipe O.D. 2 (mm)	N/A	Pipe O.D. 2 (inch)	N/A
