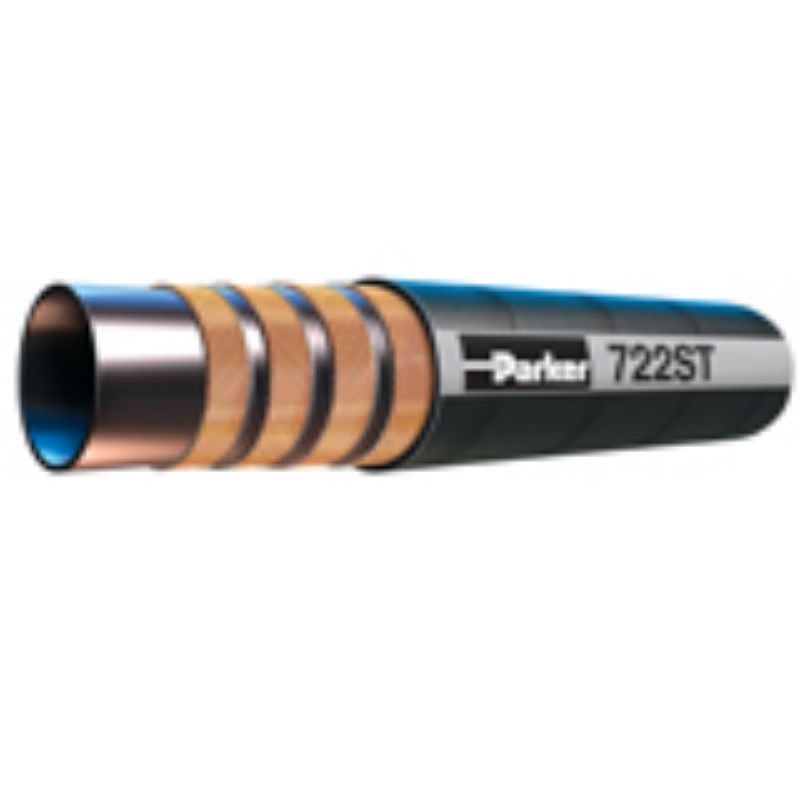

Parker 722-12 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 722 Hose

With 4,000 PSI constant working pressure hoses, half SAE bend radius, and three cover options, Parker’s 722 GlobalCore hose delivers maximum performance and efficiency.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 722-12

$19.30/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Maximum Operating Temperature	100 °C
Hose Cover Type	Standard Cover	Division	Hose Products Division
Hose Inner Tube Material	Synthetic Rubber	Media	Lubricants (Oils)
Compatible Fitting	43 Series	Minimum Bend Radius	120 mm
Specifications Met	ISO 18752	Hose Reinforcement Material	4 Spirals
Application	Petroleum Base Hydraulic Fluids	Cover Material	Synthetic Rubber
Nominal Hose Inside Diameter	19 mm	Minimum Operating Temperature	-40 °F
Outside Diameter	30.7 mm	Inside Diameter	19 mm
Weight	0.94 lb/ft	Maximum Operating Pressure	4000 psi
Hose I.D. (size)	-12	Hose Cover Type	Standard Cover
