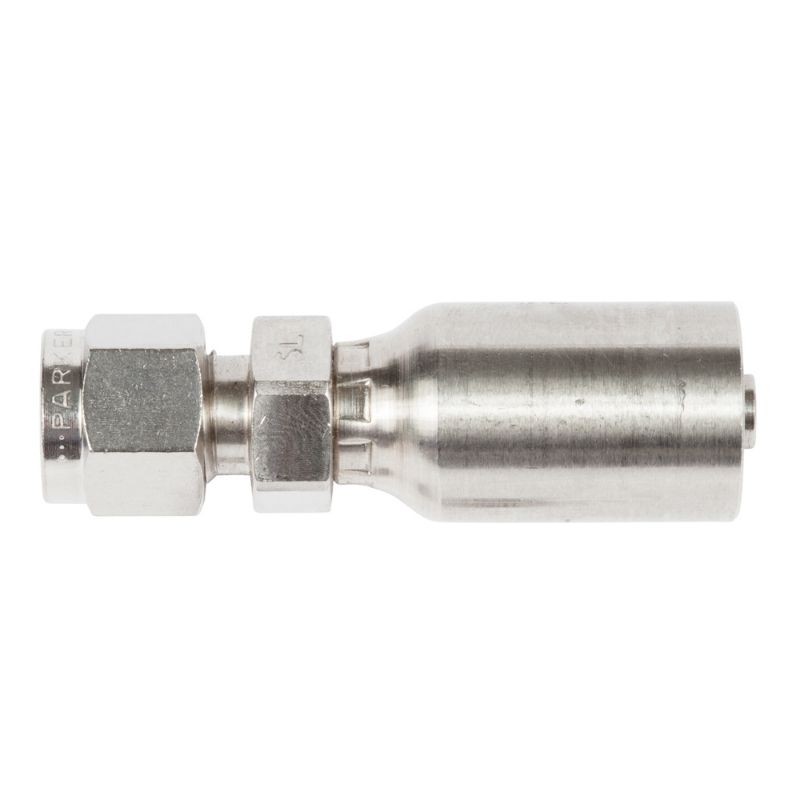

Parker 1AL56-6-6C - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 1AL56-6-6C

$147.50/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Parflex Division
Body Material	Stainless Steel	Shape	Straight
Hex Size 2	n/a	Application	Public Works
Shipping Weight	0.154 lb	Tube Outside Diameter	n/a
Hex Size 1	n/a	Connection 1 Type	Hose
Brand	Parker	Industry	Industrial Manufacturing Equipment
Maximum Operating Pressure	5000 psi (Dependent on hose)	Fitting Length	9.5 mm (see drawing legend A)
Configuration	Hose to Port	Connection 2 Size	9/16"-20 inch Thread
For Fluid Type	Oil	Division	Parflex Division
Technology	Fluid & Gas Handling	Hex Size	11/16 inch (see drawing legend H)
Connection 1 Size	3/8 inch Hose I.D.	Connection Length	2.09 inch Cut-off allowance
Connection 2 Type	Female	Product Style	Female A-Lok® Compression
Materials of Construction	Stainless Steel	Hose I.D. (inch)	0.375"
Length (inch)	2.09"	Connection 2 Size	9/16"-20
