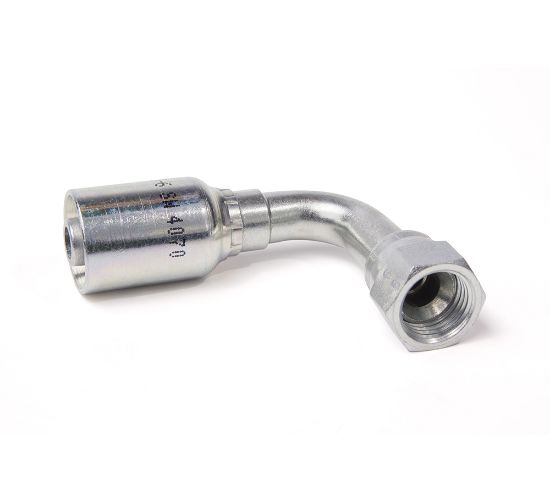

Parker 1L956-8-6 - Global Fittings - 56 Series - Inch

The Global 56 Series replaces the 55/58 Series. It is shorter, more compact, and is 20% lighter than comparable fittings.

AFP Availability:	Quote Required
Partner Available:	14 In Stock

Brand Parker

Part No. 1L956-8-6

$43.81/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection Length	1-7/16 inch Cut-off allowance	Connection 2 Type	JIC 37°
Coating	Chromium 6 Free-plated	Hex Size	n/a
Connection 1 Size	9.5 mm Hose I.D.	Shipping Weight	0.092 kg
Application	Machine Tools	Division	Parflex Division
Shape	Elbow 90° Medium Drop	Connection 1 Type	Hose
Hex Size 2	n/a	Hex Size 1	7/8 inch (see drawing legend J)
Tube Outside Diameter	n/a	Maximum Operating Pressure	34.5 MPa (Dependent on hose)
Industry	Transportation	Brand	Parker
Configuration	Hose to Port	Fitting Length	2.44 inch (see drawing legend A)
Dimensional Weight	0.1177 lb	Connection 2 Size	3/4"-16 inch Thread
For Fluid Type	Hydraulic Fluids	Division	Parflex Division
Technology	Fluid & Gas Handling	Materials of Construction	Steel
Hose I.D. (inch)	0.375"	Length (inch)	2.22"
Connection 2 Size	3/4"-16	Product Style	Female JIC 37° - Swivel - 90° Elbow - Medium Drop
