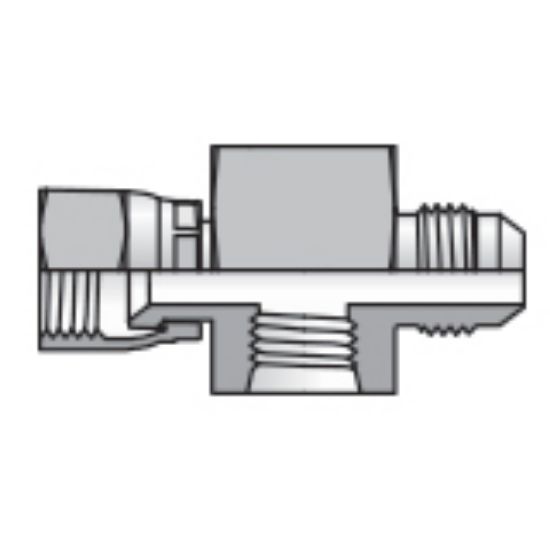

Parker 4-4 XHX6G5TP-S - In-Line Diagnostic Fittings and Adapters

Name: Parker 4-4 XHX6G5TP-S - In-Line Diagnostic Fittings and Adapters
SKU: 4-4 XHX6G5TP-S
Price: 66.24 USD
Availability: InStock

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

AFP Availability:

21 In Stock

North Chesterfield, VA	4
Norfolk, VA	3
West Knoxville, TN	3
Johnson City, TN	3 (Pickup only)
Richmond, VA	2 (Pickup only)
Ashland, VA	2 (Pickup only)
East Knoxville, TN	2
Fayetteville, NC	1
Summerville, SC	1

Partner Available:

200 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 4-4 XHX6G5TP-S

$66.24/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection Type	In-Line Gauge Port Tee	Division	Tube Fittings Division
Dimensional Weight	0.19784172661870503 lb	Maximum Dynamic Pressure	6000 psi
Maximum Static Pressure	10000 psi	Body Material	Steel
O-Ring Material	na	Connection 2 Thread Size (mm)	na
Connection 2 Thread Size (inch)	na	Connection 1 Tube O.D. (mm)	na
Connection 2 Style	Female 37° Flare Swivel	Connection 1 Style	Male 37° Flare
Connection 3 Style	Female SAE-ORB Port	Connection 3 Thread Size (inch)	7/16-20
Connection 2 Tube O.D. (mm)	na	Connection 3 Thread Size (mm)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Tube O.D. (inch)	1/4

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
