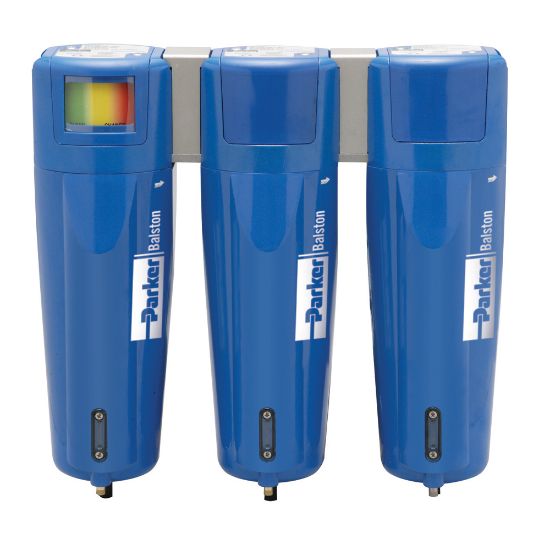

Parker 3B-8312N-3A1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3B-8312N-3A1

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Division	Industrial Gas Filtration and Generation Division
Port Size	1-1/2 inch	Micron Rating	0.01 MICRON
Drain Port Size	1/8 inch	Maximum Operating Temperature	129 °F
Minimum Operating Temperature	-150 °F	Optional Accessories	Automatic Drain, DPI
Height	431.8 mm	Efficiency Rating	99.99 % Stage Two
Maximum Operating Pressure	175 psig	Width	431.8 mm
Weight	18.8 kg	Maximum Flow Rate	110.0 CFM
Compatible Element	Stage One: 5/200-35-DX; Stage Two: 5/200-35-BX; Stage Three: 5/200-35-SA	Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade
Connection Type	NPT	Brand	Balston
Port Size	1.5"	Product Type	3-Stage (DX, BX, SA) Filter Assembly

Product resources

Literature and Reference Materials
