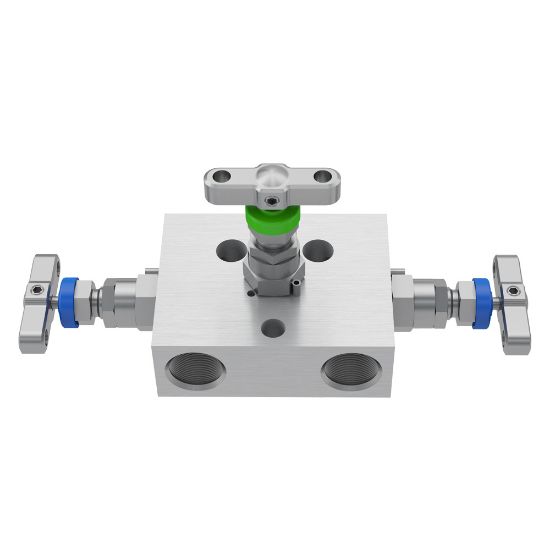

Parker HLS3MDTP3PNC - 2, 3 and 5 Valve instrument manifolds, needle pattern, remote mount - H Series

Compact and lightweight multiple block instrument manifold valves for remote installation to pressure or differential pressure (flow) measurement devices. Available in pressure ratings up to 6,000 psi (414 bar) and 10,000 psi (689 bar)

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. HLS3MDTP3PNC

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Mounting Option	Carbon Steel brackets and bolts, Stainless Steel brackets and bolts	For Fluid Type	General Gaseous and Liquid Media
Additional Options	Contact Parker for the following options: <br/>Material Options: Alloy M400, Duplex, Super Duplex, Alloy C276, Titanium, Alloy 625, Alloy 825, Carbon Steel<br/>Connection options: BSPP, BSPT, Integral Swivel Gauge, Socket Weld, Butt Weld, Inverted and PF	Division	Instrumentation Products Division
Operating Temperature	PTFE packing: From -54°C to +260°C, From -65°F to +500°F<br/>Graphite packing: From -54°C to +538°C, From -65°F to +1000°F	Body Type	Flat Barstock
Body Pattern	Short Pattern	Inlet Connection	1/2 Inch NPT Female
Configuration	Double Isolate and Equalise with Downstream Test Ports	Seat Material	Metal to Metal
Body Material	316 Stainless Steel	Vent Size	1/4 Inch NPT Female
Packing Material	Graphite	Operating Pressure	6000 PSI / 414 BAR
Number of Valves	3	Meets Certifications	NACE
Additional Options	n/a	Outlet Connection	1/2 Inch NPT Female
Options	Blank Plug
