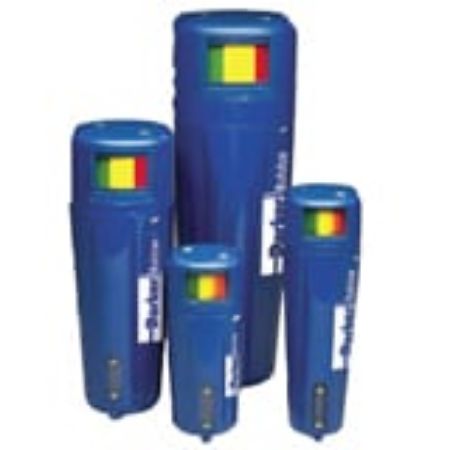

Balston 2000 Series Compressed Air Filters
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.
These filters use coalescing technology where liquid releases from the filter cartridge to an automatic drain as rapidly as it enters the filters. This allows the filter to continue removing liquids for an unlimited amount of time without loss of efficiency or flow capacity.
Product Features
- Remove 99.99% of 0.01 micron particles.
- Coalescing technology
- Flow rates up to 40,000 SCFM
Read More...These filters use coalescing technology where liquid releases from the filter cartridge to an automatic drain as rapidly as it enters the filters. This allows the filter to continue removing liquids for an unlimited amount of time without loss of efficiency or flow capacity.
Product Features
- Remove 99.99% of 0.01 micron particles.
- Coalescing technology
- Flow rates up to 40,000 SCFM
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Division | Port Size | Weight | Micron Rating | Minimum Operating Temperature | Width | Maximum Operating Temperature | Height | Drain Port Size | Efficiency Rating | Maximum Flow Rate | Compatible Element | Optional Accessories | Materials of Construction | Maximum Operating Pressure | Port Size | Connection Type | Brand | Product Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2002N-0A0-000 | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/4 inch | 0.9 kg | n/a MICRON | -100 °C | 25.4 mm | 129 °F | 215.9 mm | n/a | Vapor Removal | 15 CFM | CI-100-12-000 | Drain Plugged, no DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.25" | NPT | Balston | Activated Carbon Adsorbent | ||
| 2002N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/4 inch | 0.9 kg | 0.01 MICRON | -150 °F | 3.3 inch | 129 °F | 215.9 mm | 1/8 inch | 99.99 % | 42.47 m3/min | 5/100-12-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.25" | NPT | Balston | Single Stage Filter | ||
| 2002N-1B1-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/4 inch | 0.9 kg | 0.01 MICRON | -100 °C | 25.4 mm | 54 °C | 215.9 mm | 1/8 inch | 93 % | 63 CFM | 5/100-12-DX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.25" | NPT | Balston | Single Stage Filter | ||
| 2003N-0A0-SA | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 3/8 inch | 2 lb | 0.01 MICRON | -100 °C | 3.3 inch | 129 °F | 8.5 inch | n/a | 99.9999+ % | 42.47 m3/min | 5/100-12-SA | Drain Plugged, no DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.375" | NPT | Balston | Single Stage Filter | ||
| 2003N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 3/8 inch | 0.9 kg | 0.01 MICRON | -150 °F | 3.3 inch | 129 °F | 8.5 inch | 1/8 inch | 99.99 % | 25 CFM | 5/100-12-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.375" | NPT | Balston | Single Stage Filter | ||
| 2003N-1B1-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 3/8 inch | 0.9 kg | 0.01 MICRON | -150 °F | 25.4 mm | 54 °C | 215.9 mm | 1/8 inch | 93 % | 63 CFM | 5/100-12-DX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.375" | NPT | Balston | Single Stage Filter | ||
| 2004N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 2 lb | 0.01 MICRON | -100 °C | 25.4 mm | 54 °C | 8.5 inch | 1/8 inch | 99.99 % | 25 CFM | 5/100-12-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2004N-1B2-DX | Quote Required | $271.00/each | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 0.9 kg | 0.01 MICRON | -150 °F | 3.3 inch | 54 °C | 8.5 inch | 1/8 inch | 93 % | 107.03 m3/min | 5/100-12-DX | Manual Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2104N-0A0-SA | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 1.1 kg | 0.01 MICRON | -100 °C | 25.4 mm | 54 °C | 2872 mm | n/a | 99.9999+ % | 107.03 m3/min | 5/100-18-SA | Drain Plugged, no DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2104N-0B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 2.5 lb | 0.01 MICRON | -100 °C | 3.3 inch | 54 °C | 2872 mm | 1/8 inch | 99.99 % | 107.03 m3/min | 5/100-18-BX | Automatic Drain | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2104N-1B1 | Quote Required | $600.00/each | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 2.5 lb | n/a MICRON | -100 °C | 3.3 inch | 129 °F | 11.3 inch | 1/8 inch | No Filter Cartridge Supplied | n/a m3/min | 5/100-18-DX, 5/100-18-BX, CI-100-25-000 | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.5" | NPT | Balston | Housing Only | ||
| 2104N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 1.1 kg | 0.01 MICRON | -100 °C | 3.3 inch | 129 °F | 2872 mm | 1/8 inch | 99.99 % | 63 CFM | 5/100-18-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2104N-1B1-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 2.5 lb | 0.01 MICRON | -100 °C | 3.3 inch | 129 °F | 11.3 inch | 1/8 inch | 93 % | 137 CFM | 5/100-18-DX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2104N-1B2-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1/2 inch | 1.1 kg | 0.01 MICRON | -150 °F | 3.3 inch | 129 °F | 2872 mm | 1/8 inch | 99.99 % | 63 CFM | 5/100-18-BX | Manual Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 0.5" | NPT | Balston | Single Stage Filter | ||
| 2206N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 3/4 inch | 8 lb | 0.01 MICRON | -150 °F | 101.6 mm | 54 °C | 330.2 mm | 1/8 inch | 99.99 % | 118.93 m3/min | 5/150-19-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.75" | NPT | Balston | Single Stage Filter | ||
| 2206N-1B1-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 3/4 inch | 8 lb | 0.01 MICRON | -100 °C | 4 inch | 54 °C | 13 inch | 1/8 inch | 93 % | 259 CFM | 5/150-19-DX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.75" | NPT | Balston | Single Stage Filter | ||
| 2206N-1B2-DX | Quote Required | $777.75/each | EA | NPT | Industrial Gas Filtration and Generation Division | 3/4 inch | 3.6 kg | 0.01 MICRON | -100 °C | 101.6 mm | 129 °F | 13 inch | 1/8 inch | 93 % | 440.04 m3/min | 5/150-19-DX | Manual Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 0.75" | NPT | Balston | Single Stage Filter | ||
| 2208N-1B1-BX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1 inch | 8 lb | 0.01 MICRON | -100 °C | 101.6 mm | 54 °C | 330.2 mm | 1/8 inch | 99.99 % | 94 CFM | 5/150-19-BX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 1" | NPT | Balston | Single Stage Filter | ||
| 2208N-1B1-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1 inch | 3.6 kg | 0.01 MICRON | -100 °C | 4 inch | 129 °F | 330.2 mm | 1/8 inch | 93 % | 786.64 m3/min | 5/150-19-DX | Automatic Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 17.2 barg | 1" | NPT | Balston | Single Stage Filter | ||
| 2208N-1B2-DX | Quote Required | TBD | EA | NPT | Industrial Gas Filtration and Generation Division | 1 inch | 3.6 kg | 0.01 MICRON | -100 °C | 101.6 mm | 54 °C | 330.2 mm | 1/8 inch | 93 % | 786.64 m3/min | 5/150-19-DX | Manual Drain, DPI | Head: Anod Alum, Bowl: Anod Alum, Internals: Nylon, Seals: Buna-N | 250 psig | 1" | NPT | Balston | Single Stage Filter |
