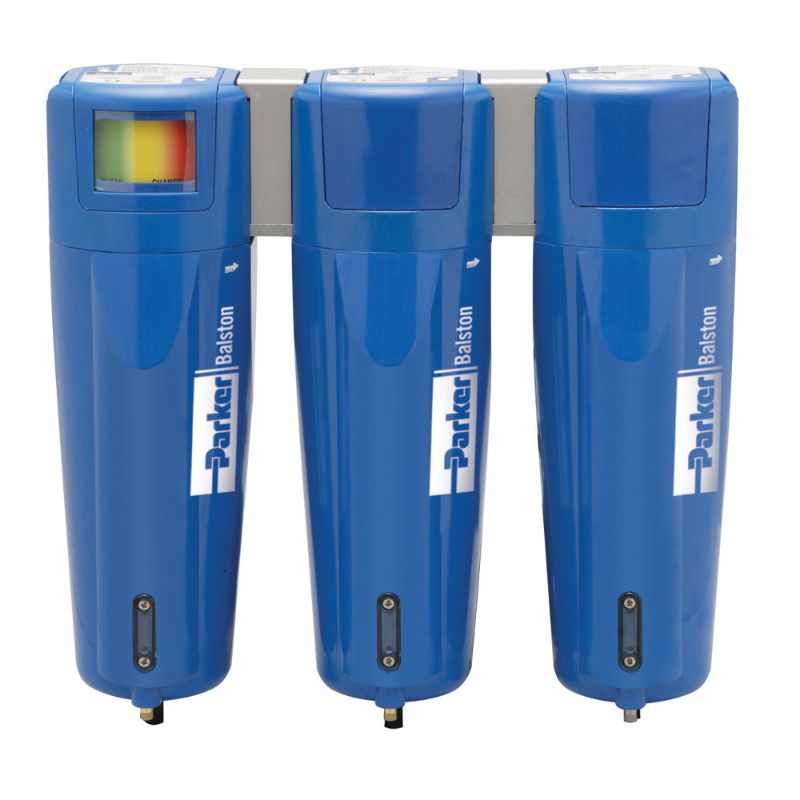

Parker 3B-2312N-3B1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3B-2312N-3B1

$4,270.29

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Industrial Gas Filtration and Generation Division	Port Size	1-1/2 inch
Micron Rating	0.01 MICRON	Drain Port Size	1/8 inch
Minimum Operating Temperature	-100 °C	Maximum Operating Temperature	129 °F
Optional Accessories	Automatic Drain, DPI	Height	431.8 mm
Efficiency Rating	93 % Stage One	Maximum Operating Pressure	175 psig
Width	431.8 mm	Weight	41.25 lb
Maximum Flow Rate	110.0 CFM	Compatible Element	Stage One: 5/200-35-DX; Stage Two: 5/200-35-BX; Stage Three: 5/200-35-SA
Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade	Connection Type	NPT
Brand	Balston	Port Size	1.5"
Product Type	3-Stage (DX, BX, SA) Filter Assembly

Product resources

Literature and Reference Materials
