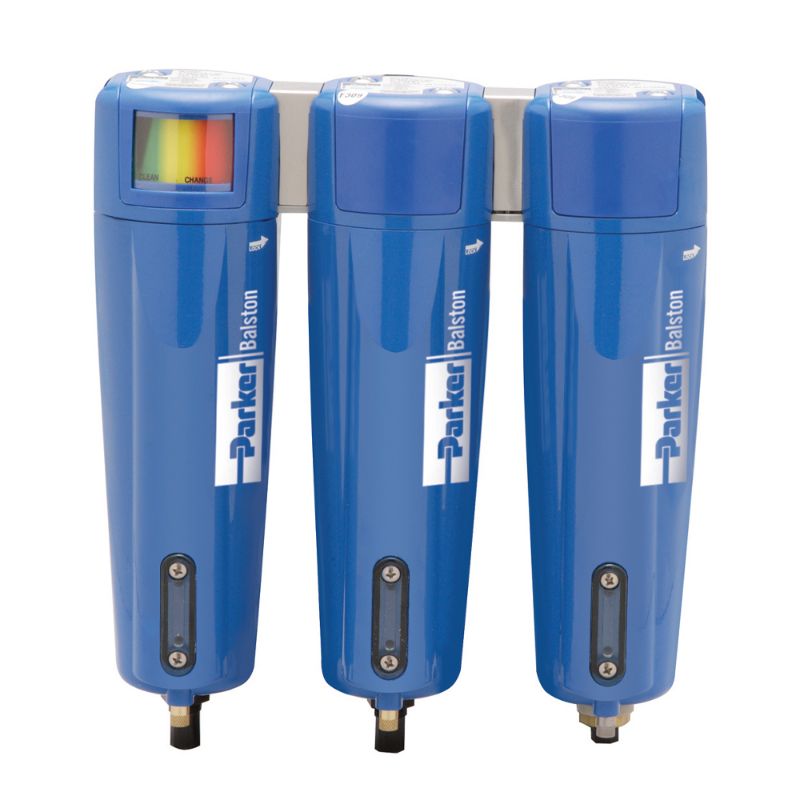

Parker 3B-2104N-3B1 - Balston 2000 Series Compressed Air Filters

Parker Balston 2000 series compressed air and gas filters remove contaminants at an efficiency of up to 99.99% for 0.01 micron particles and droplets.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3B-2104N-3B1

$2,000.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Industrial Gas Filtration and Generation Division	Port Size	1/4 inch
Micron Rating	0.01 MICRON	Weight	7.5 lb
Drain Port Size	1/8 inch	Width	254 mm
Maximum Operating Temperature	129 °F	Minimum Operating Temperature	-150 °F
Optional Accessories	Automatic Drain, DPI	Efficiency Rating	93 % Stage One
Maximum Operating Pressure	12 barg	Height	279.4 mm
Maximum Flow Rate	63.0 CFM	Compatible Element	Stage One: 5/100-18-DX; Stage Two: 5/100-18-BX; Stage Three: 5/100-18-SA
Materials of Construction	Head: Alum, Bowl: Alum, Internals: Alum, Seals: Buna-N Food Grade	Port Size	0.25"
Connection Type	NPT	Brand	Balston
Product Type	3-Stage (DX, BX, SA) Filter Assembly

Product resources

Literature and Reference Materials
