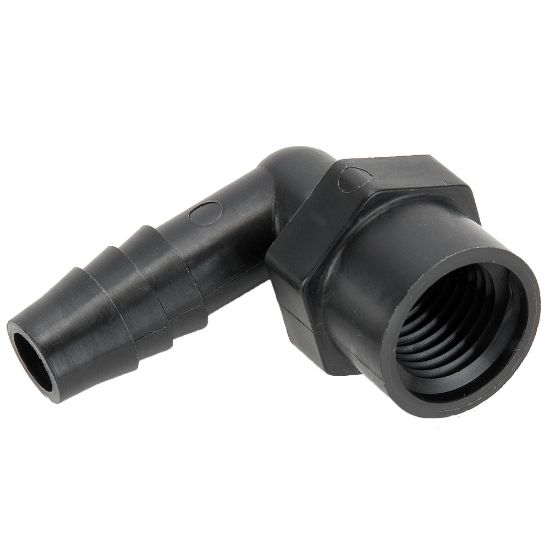

Parker 370HB-6-2PP - Plastic Barbed Fittings, Parker Par-Barbs

Parker's Par-Barb fttings are specially engineered with a four-barb design that generates maximum gripping and sealing power when combined with a hose clamp.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 370HB-6-2PP

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Fluid System Connectors Division	Specifications Met	FDA
For Fluid Type	Water	Application	Beverage Dispensing
Maximum Operating Pressure	125 psi	Maximum Operating Temperature	104 °C
Minimum Operating Temperature	-12 °C	Configuration	Tube to Pipe
Connection 1 Size	3/8	Media	Water
Shape	90° Elbow	Vacuum Pressure Rating	-29
Body Material	Polypropylene	Connection 2 Size	1/8
Compatible Tube	Vinyl	Division	Fluid System Connectors Division
Connection 2 Type	Female NPT	Technology	Fluid & Gas Handling
Connection 1 Type	Barbed	Connection 3 Type	N/A
Color	Black	Brand	Parker
Connection 3 Size	N/A	Shape	Elbow 90°
Connection 2 Type	Female Pipe	Connection 1 Style	Barb
Connection 1 Hose I.D. (inch)	3/8" (I.D.)	Connection 2 Hose I.D. (inch)	n/a
Connection 2 Thread Size	1/8"	Configuration	Barb to Female Pipe
Body Material	Polypropylene, Black	Color	White
Connection 2 Size	1/8"	Connection 3 Type	N/A
Connection 1 Type	Barbed	Connection 3 Size	N/A
Connection 1 Size	3/8"
