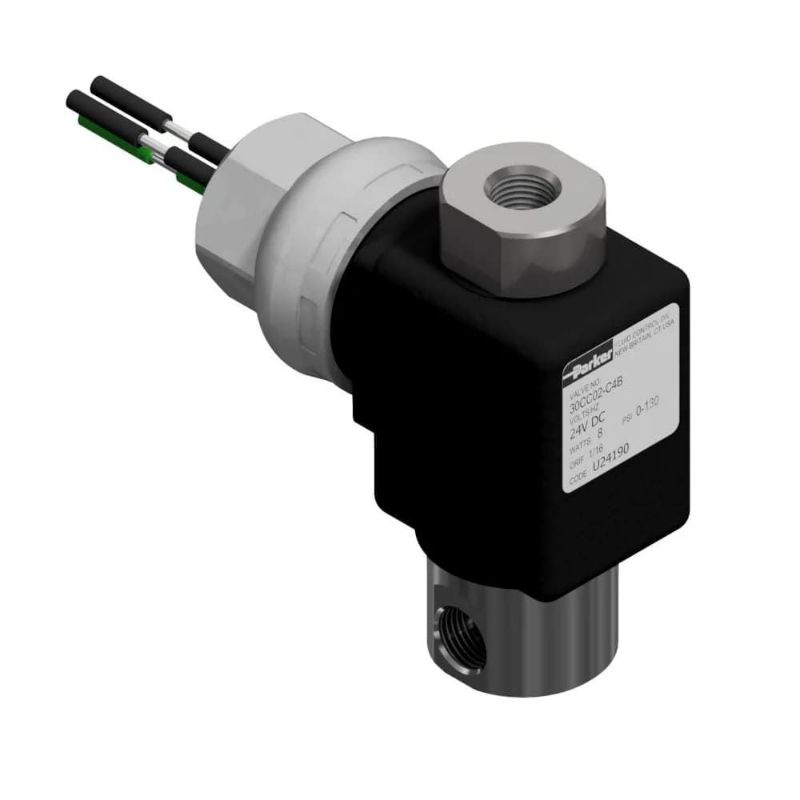

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 30CU02AV4C4F - Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CU02AV4C4F

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1/8	Port Type	NPT
Division	Fluid Control Division	Media	General Purpose for Air
Function	Universal	Coil Type	1/2" Conduit, 18" Leads
Valve Type	3-Way	Input Voltage	110/50-120/60
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Number of Ports	3	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Minimum Pressure Differential	0
Additional Options	n/a	Seal Material	FKM
Body Material	Stainless Steel 303	Maximum Fluid Temperature	240
Main Flow Coefficient	0.02	Exhaust Flow Coefficient	n/a
Power Consumption	10 W (AC)	Maximum Pressure Differential	200 psi (AC)
Exhaust Orifice Size	n/a	Product Series	204/304 Series
Main Orifice Size	1/32	Minimum Fluid Temperature	32
Coil Type	1/2" Conduit, 18" Leads	Voltage (V)	110/50-120/60
Power (Watts)	10 Watt (AC)	Orifice Main (inch)	1/32
Flow Factor Main (Cv)	0.02	Maximum Pressure Differential (psi)	200 psi (AC)
