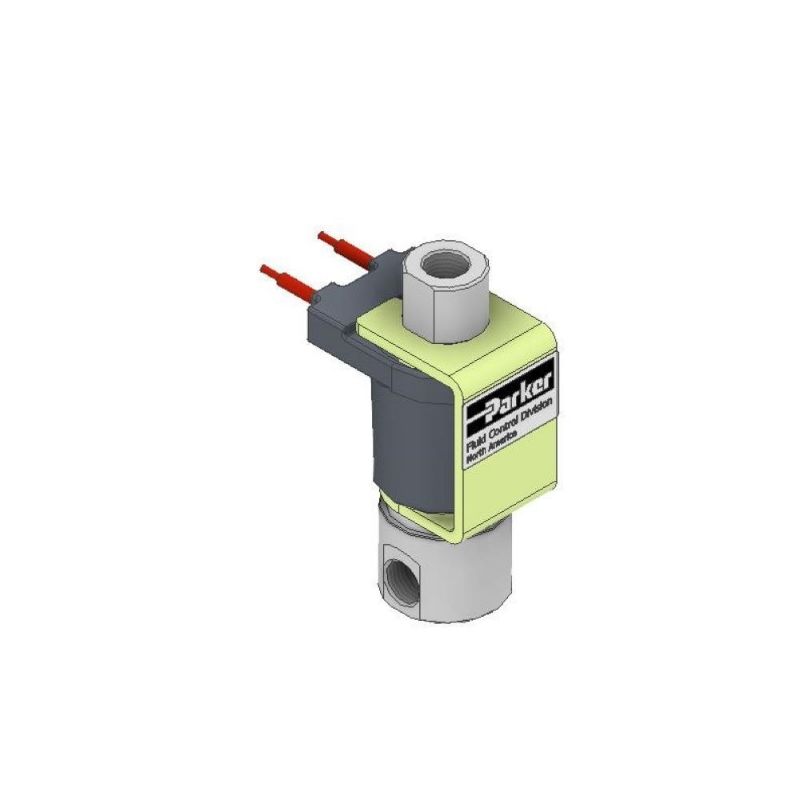

Parker 30CU02AV4L2A - Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CU02AV4L2A

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Size	1/8	Port Type	NPT
Division	Fluid Control Division	Media	General Purpose for Air
Function	Universal	Valve Type	3-Way
Input Voltage	110/50-120/60	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Pressure Differential	0	Additional Options	n/a
Seal Material	FKM	Body Material	Stainless Steel 303
Coil Type	Open Frame, 18" Leads	Maximum Fluid Temperature	240
Main Flow Coefficient	0.02	Exhaust Flow Coefficient	n/a
Power Consumption	8 W (DC)	Maximum Pressure Differential	200 psi (DC)
Exhaust Orifice Size	n/a	Product Series	204/304 Series
Main Orifice Size	1/32	Minimum Fluid Temperature	32
Voltage (V)	110/50-120/60	Coil Type	Open Frame, 18" Leads
Power (Watts)	8 Watt (DC)	Orifice Main (inch)	1/32
Flow Factor Main (Cv)	0.02	Maximum Pressure Differential (psi)	200 psi (DC)
