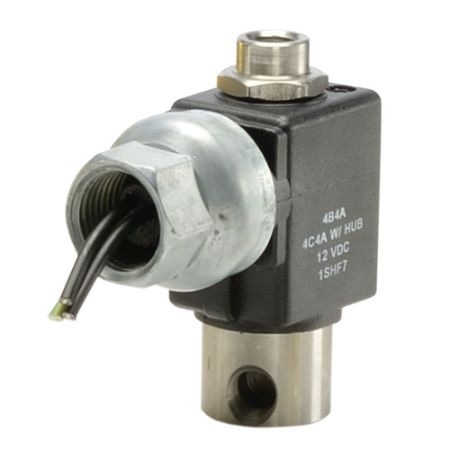

Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Universal Direct Acting 1/8" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Division | Media | Function | Valve Type | Input Voltage | Actuation Type | Number of Ports | Coil Specifications Met | Minimum Pressure Differential | Additional Options | Seal Material | Port Size | Body Material | Maximum Fluid Temperature | Exhaust Flow Coefficient | Power Consumption | Main Flow Coefficient | Maximum Pressure Differential | Coil Type | Exhaust Orifice Size | Orifice 2 Size | Product Series | Main Orifice Size | Flow Coefficient 2 | Minimum Fluid Temperature | Voltage (V) | Coil Type | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) | Maximum Pressure Differential (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30CU02AV4B2B | Quote Required | TBD | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 24.0 VDC | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.02 Cv | 200 psi (DC) | Metal Enc, 18" Leads | n/a | 1/32 inch | 204/304 Series | 1/32 inch | 0.02 Cv | 32 °F | 24 VDC | Metal Enc, 18" Leads | 8 Watt (DC) | 1/32 | 0.02 | 200 psi (DC) | |||
| 30CU02AV4B2F | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 10 W (AC) | 0.02 Cv | 200 psi (AC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 1/32 inch | n/a | 32 °F | 110/50-120/60 | Metal Enc, 18" Leads | 10 Watt (AC) | 1/32 | 0.02 | 200 psi (AC) | |||
| 30CU02AV4B2G | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 220/50 to 240/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 10 W (AC) | 0.02 | 200 psi (AC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 1/32 | n/a | 32 | 220/50-240/60 | Metal Enc, 18" Leads | 10 Watt (AC) | 1/32 | 0.02 | 200 psi (AC) | |||
| 30CU02AV4B4A | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 12.0 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 8 W (DC) | 0.02 | 200 psi (DC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 1/32 | n/a | 32 | 12 VDC | Integrated, 18" Leads | 8 Watt (DC) | 1/32 | 0.02 | 200 psi (DC) | |||
| 30CU02AV4B4B | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 24.0 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 8 W (DC) | 0.02 | 200 psi (DC) | Integrated, 18" Leads | n/a | 1/32 | 204/304 Series | 1/32 | 0.02 | 32 | 24 VDC | Integrated, 18" Leads | 8 Watt (DC) | 1/32 | 0.02 | 200 psi (DC) | |||
| 30CU02AV4B4F | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 10 W (AC) | 0.02 | 200 psi (AC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 1/32 | n/a | 32 | 110/50-120/60 | Integrated, 18" Leads | 10 Watt (AC) | 1/32 | 0.02 | 200 psi (AC) | |||
| 30CU02AV4C4F | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 10 W (AC) | 0.02 | 200 psi (AC) | 1/2" Conduit, 18" Leads | n/a | n/a | 204/304 Series | 1/32 | n/a | 32 | 110/50-120/60 | 1/2" Conduit, 18" Leads | 10 Watt (AC) | 1/32 | 0.02 | 200 psi (AC) | |||
| 30CU02AV4L2A | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 8 W (DC) | 0.02 | 200 psi (DC) | Open Frame, 18" Leads | n/a | n/a | 204/304 Series | 1/32 | n/a | 32 | 110/50-120/60 | Open Frame, 18" Leads | 8 Watt (DC) | 1/32 | 0.02 | 200 psi (DC) | |||
| 30CU02EV4B2A | Quote Required | TBD | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.05 Cv | 150 psi (DC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 3/64 inch | n/a | 32 °F | 110/50-120/60 | Metal Enc, 18" Leads | 8 Watt (DC) | 3/64 | 0.05 | 150 psi (DC) | |||
| 30CU02EV4B2F | Quote Required | $108.04 | EA | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 10 W (AC) | 0.05 Cv | 150 psi (AC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 3/64 inch | n/a | 32 °F | 110/50-120/60 | Metal Enc, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | 150 psi (AC) | ||
| 30CU02EV4B4A | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.05 Cv | 150 psi (DC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 3/64 inch | n/a | 32 °F | 110/50-120/60 | Integrated, 18" Leads | 8 Watt (DC) | 3/64 | 0.05 | 150 psi (DC) | |||
| 30CU02EV4B4F | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 10 W (AC) | 0.05 | 150 psi (AC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 3/64 | n/a | 32 | 110/50-120/60 | Integrated, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | 150 psi (AC) | |||
| 30CU02EV4C4A | Quote Required | TBD | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.05 Cv | 150 psi (DC) | 1/2" Conduit, 18" Leads | n/a | n/a | 204/304 Series | 3/64 inch | n/a | 32 °F | 110/50-120/60 | 1/2" Conduit, 18" Leads | 8 Watt (DC) | 3/64 | 0.05 | 150 psi (DC) | |||
| 30CU02EV4C4E | Quote Required | $126.68 | EA | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 24/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 10 W (AC) | 0.05 Cv | 150 psi (AC) | 1/2" Conduit, 18" Leads | n/a | n/a | 204/304 Series | 3/64 inch | n/a | 32 °F | 110/50-120/60 | 1/2" Conduit, 18" Leads | 10 Watt (AC) | 3/64 | 0.05 | 150 psi (AC) | ||
| 30CU02EV4T2B | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 8 W (DC) | 0.05 | 150 psi (DC) | Open Frame, 1/4" Tab | n/a | 3/64 | 204/304 Series | 3/64 | 0.05 | 32 | 110/50-120/60 | Open Frame, 1/4" Tab | 8 Watt (DC) | 3/64 | 0.05 | 150 psi (DC) | |||
| 30CU02GV4B2A | Quote Required | TBD | NPT | Fluid Control Division | Liquids and Gases | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.09 Cv | 100 psi (DC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 1/16 inch | n/a | 32 °F | 110/50-120/60 | Metal Enc, 18" Leads | 8 Watt (DC) | 1/16 | 0.09 | 100 psi (DC) | |||
| 30CU02GV4B2G | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 10 W (AC) | 0.09 Cv | 100 psi (AC) | Metal Enc, 18" Leads | n/a | n/a | 204/304 Series | 1/16 inch | n/a | 32 °F | 110/50-120/60 | Metal Enc, 18" Leads | 10 Watt (AC) | 1/16 | 0.09 | 100 psi (AC) | |||
| 30CU02GV4B4A | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 | n/a | FKM | 1/8 | Stainless Steel 303 | 240 | n/a | 8 W (DC) | 0.09 | 100 psi (DC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 1/16 | n/a | 32 | 110/50-120/60 | Integrated, 18" Leads | 8 Watt (DC) | 1/16 | 0.09 | 100 psi (DC) | |||
| 30CU02GV4B4F | Quote Required | 6 In Stock | $118.84 | EA | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class F | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 10 W (AC) | 0.09 Cv | 100 psi (AC) | Integrated, 18" Leads | n/a | n/a | 204/304 Series | 1/16 inch | n/a | 32 °F | 110/50-120/60 | Integrated, 18" Leads | 10 Watt (AC) | 1/16 | 0.09 | 100 psi (AC) | |
| 30CU02GV4D6B | Quote Required | TBD | NPT | Fluid Control Division | General Purpose for Air | Universal | 3-Way | 110/50-120/60 | Direct Acting | 3 | Class H | 0 psi | n/a | FKM | 1/8 inch | Stainless Steel 303 | 240 °F | n/a | 8 W (DC) | 0.09 Cv | 100 psi (DC) | DIN Form A | n/a | 1/16 inch | 204/304 Series | 1/16 inch | 0.1 Cv | 32 °F | 110/50-120/60 | DIN Form A | 8 Watt (DC) | 1/16 | 0.09 | 100 psi (DC) |
