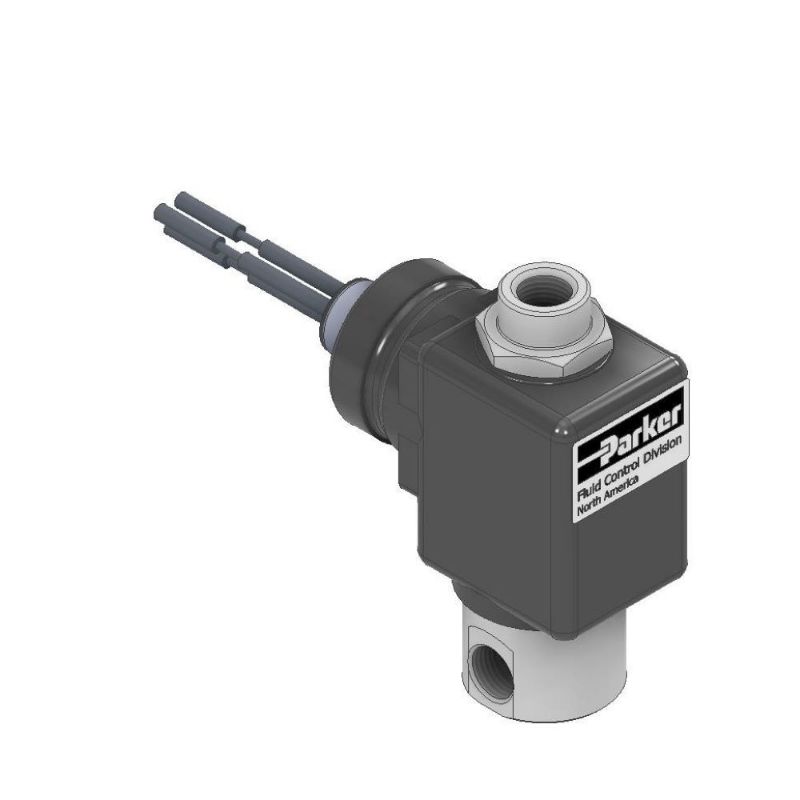

Parker 30CU02EV4B2F - Parker 3-Way Universal, 1/8" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/8" NPT Solenoid Valves provide operating pressures up to 200 psi and flow factors up to 0.38 CV's. They offer a 303 stainless body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 30CU02EV4B2F

$108.04

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Division	Fluid Control Division	Media	General Purpose for Air
Function	Universal	Valve Type	3-Way
Input Voltage	110/50-120/60	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	Class F
Minimum Pressure Differential	0 psi	Additional Options	n/a
Seal Material	FKM	Maximum Pressure Differential	150 psi (AC)
Port Size	1/8 inch	Body Material	Stainless Steel 303
Maximum Fluid Temperature	240 °F	Main Flow Coefficient	0.05 Cv
Exhaust Flow Coefficient	n/a	Power Consumption	10 W (AC)
Coil Type	Metal Enc, 18" Leads	Exhaust Orifice Size	n/a
Product Series	204/304 Series	Main Orifice Size	3/64 inch
Minimum Fluid Temperature	32 °F	Voltage (V)	110/50-120/60
Maximum Pressure Differential (psi)	150 psi (AC)	Coil Type	Metal Enc, 18" Leads
Power (Watts)	10 Watt (AC)	Orifice Main (inch)	3/64
Flow Factor Main (Cv)	0.05
