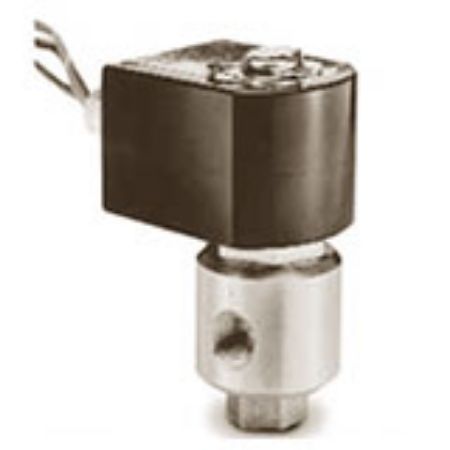

Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Universal Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Orifice 2 Size | Product Series | Flow Coefficient 2 | Actuation Type | Power Consumption | Seal Material | Exhaust Flow Coefficient | Division | Coil Type | Valve Type | Minimum Fluid Temperature | Additional Options | Exhaust Orifice Size | Function | Body Material | Main Flow Coefficient | Input Voltage | Port Size | Coil Specifications Met | Number of Ports | Media | Minimum Pressure Differential | Main Orifice Size | Maximum Pressure Differential | Port Type | Maximum Fluid Temperature | Voltage (V) | Coil Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04F30U2106ADFPH05 | Quote Required | $183.83/each | n/a | Gold Ring Series | n/a | Direct Acting | 16 W (AC) | NBR | 0.12 Cv | Fluid Control Division | DIN Form A, Class F | 3-Way | 0 °F | n/a | 3/32 inch | Universal | Brass | 0.12 Cv | 110/50-120/60 | 1/4 inch | Class F | 3 | General Purpose for Air | 0 psi | 3/32 inch | 50 psi (AC) | NPT | 200 °F | 110/50-120/60 | DIN Form A, Class F |
