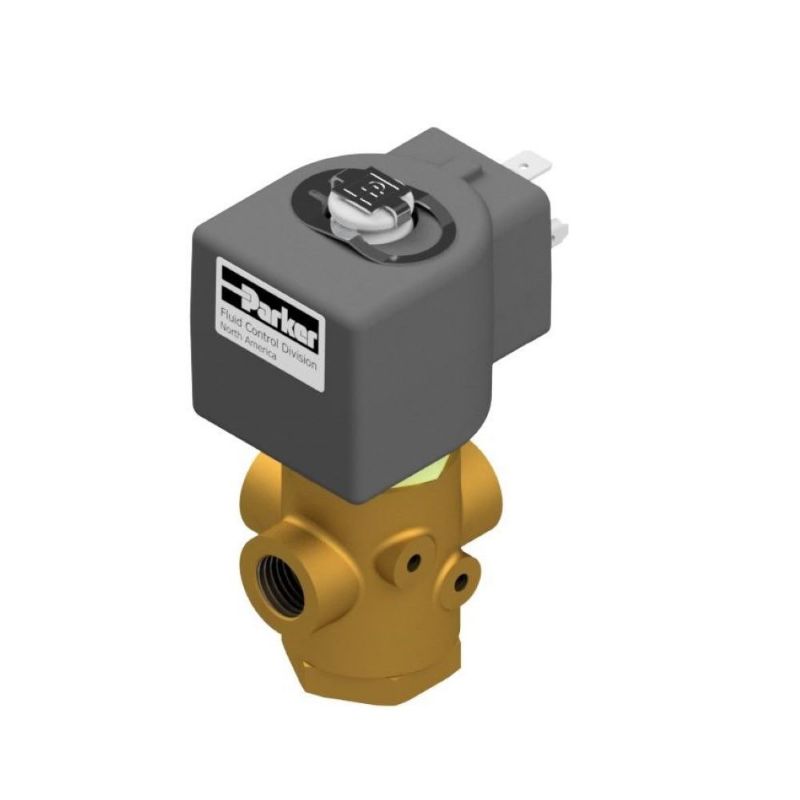

Parker 04F30U2106ADFPH05 - Parker 3-Way Universal, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Universal, 1/4" NPT Solenoid Valves provide operating pressures of 50 psi and flow factors of 0.12 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F30U2106ADFPH05

$176.72

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Product Series	Gold Ring Series
Function	Universal	Number of Ports	3
Port Type	NPT	Power Consumption	16 W (AC)
Port Size	1/4 inch	Maximum Pressure Differential	50 psi (AC)
Exhaust Flow Coefficient	0.12 Cv	Minimum Fluid Temperature	0 °F
Body Material	Brass	Exhaust Orifice Size	3/32 inch
Main Flow Coefficient	0.12 Cv	Actuation Type	Direct Acting
Valve Type	3-Way	Seal Material	NBR
Coil Type	DIN Form A, Class F	Coil Specifications Met	Class F
Input Voltage	110/50-120/60	Division	Fluid Control Division
Maximum Fluid Temperature	200 °F	Minimum Pressure Differential	0 psi
Main Orifice Size	3/32 inch	Orifice 2 Size	n/a
Flow Coefficient 2	n/a	Media	General Purpose for Air
Additional Options	n/a	Voltage (V)	110/50-120/60
Coil Type	DIN Form A, Class F
