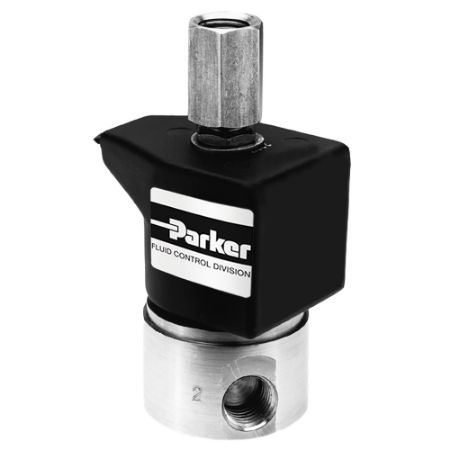

Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Normally Closed, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Input Voltage | Body Material | Minimum Pressure Differential | Port Size | Main Flow Coefficient | Media | Number of Ports | Coil Type | Coil Specifications Met | Port Type | Maximum Fluid Temperature | Product Series | Orifice 2 Size | Power Consumption | Exhaust Flow Coefficient | Actuation Type | Seal Material | Maximum Pressure Differential | Main Orifice Size | Division | Additional Options | Function | Flow Coefficient 2 | Exhaust Orifice Size | Valve Type | Minimum Fluid Temperature | Coil Type | Voltage (V) | Seal Material | Mechanical Option | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) | Maximum Pressure Differential (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71315SN2EN00N0C111P3 | Quote Required | $185.78/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 250 psi (AC) | 3/64 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | ||
| 71315SN2ENJ1N0C111C1 | Quote Required | $196.31/each | 12.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 250 psi (DC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | ||
| 71315SN2ENJ1N0C111C2 | Quote Required | $197.92/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 250 psi (DC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | ||
| 71315SN2ENJ1N0C111P3 | Quote Required | 1 Limited Stock | $208.20/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 250 psi (AC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | |
| 71315SN2GN00N0C111P3 | Quote Required | $185.78/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | ||
| 71315SN2GN00N0H111C2 | Quote Required | $262.91/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | No Option | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2GN00N0H111P3 | Quote Required | $263.18/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | ||
| 71315SN2GNJ1N0C111C2 | Quote Required | 1 Limited Stock | $205.46/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | |
| 71315SN2GNJ1N0C111P3 | Quote Required | 1 Limited Stock | $198.42/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | |
| 71315SN2GNJ1N0H111C1 | Quote Required | $274.30/each | 12.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2GNJ1N0H111C2 | Quote Required | $274.24/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2GNJ1N0H111P3 | Quote Required | 9 In Stock | $274.47/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | |
| 71315SN2GVJ1N0H111C2 | Quote Required | $284.51/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | FKM | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | FKM | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2KN00N0C111P3 | Quote Required | $185.78/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 125 psi (AC) | 3/32 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | ||
| 71315SN2KNJ1N0C111C2 | Quote Required | 5 In Stock | $207.70/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | 125 psi (DC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | |
| 71315SN2KNJ1N0C111P3 | Quote Required | 7 In Stock | $206.32/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 125 psi (AC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | |
| 71315SN2KNJ1N0H111C2 | Quote Required | 12 In Stock | $274.12/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | 125 psi (DC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | |
| 71315SN2MN00N0C111P3 | Quote Required | $186.17/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.23 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 90 psi (AC) | 1/8 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/8 | 0.23 | 90 psi (AC) | ||
| 71315SN2VNJ1N0C111C2 | Quote Required | $191.79/each | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.67 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | n/a | 1/4 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/4 | 0.67 | n/a (VAC) | ||
| 71315SN2VNJ1N0C111P3 | Quote Required | $192.00/each | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.67 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | n/a | 1/4 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/4 | 0.67 | n/a (VAC) |
