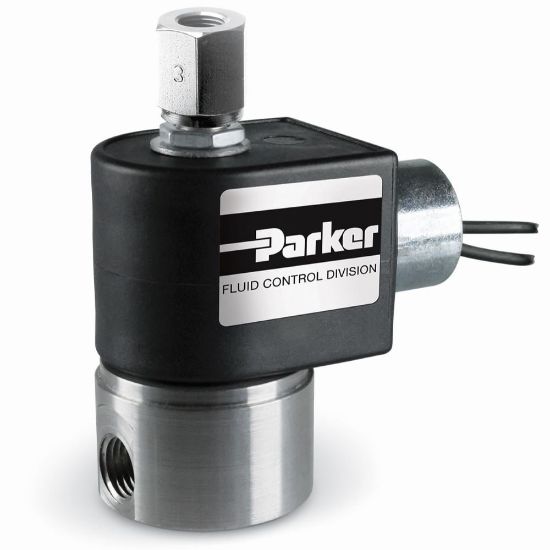

Parker 71315SN2EN00N0C111P3 - Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 250 psi and flow factors up to 0.67 CV's. They come in stainless with multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 71315SN2EN00N0C111P3

$181.05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Port Size	1/4 inch	Division	Fluid Control Division
Media	Liquids and Gases	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	3-Way
Body Material	Stainless Steel	Input Voltage	110/50-120/60
Seal Material	NBR	Actuation Type	Direct Acting
Orifice 2 Size	n/a	Number of Ports	3
Flow Coefficient 2	n/a	Coil Specifications Met	NEMA 4X
Minimum Fluid Temperature	0 °F	Minimum Pressure Differential	0 psi
Additional Options	No Option	Exhaust Orifice Size	1/16 inch
Maximum Fluid Temperature	185 °F	Power Consumption	10 W (AC)
Main Orifice Size	3/64 inch	Product Series	7000 Series
Main Flow Coefficient	0.062 Cv	Exhaust Flow Coefficient	0.095 Cv
Maximum Pressure Differential	250 psi (AC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Seal Material	NBR
Mechanical Option	No Option	Power (Watts)	10 Watt (AC)
Orifice Main (inch)	3/64	Flow Factor Main (Cv)	0.062
Maximum Pressure Differential (psi)	250 psi (AC)
