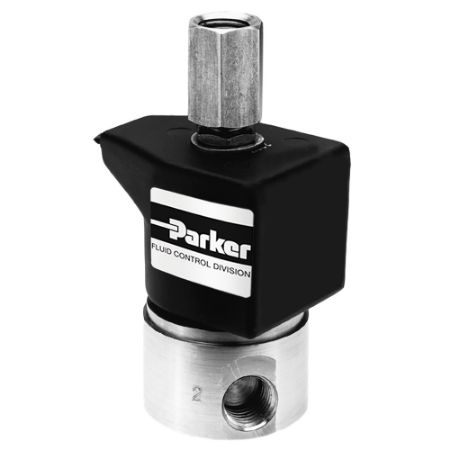

Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 3-Way Normally Closed, Direct Acting 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Input Voltage | Body Material | Minimum Pressure Differential | Port Size | Main Flow Coefficient | Media | Number of Ports | Coil Type | Coil Specifications Met | Port Type | Maximum Fluid Temperature | Product Series | Orifice 2 Size | Power Consumption | Exhaust Flow Coefficient | Actuation Type | Seal Material | Maximum Pressure Differential | Main Orifice Size | Division | Additional Options | Function | Flow Coefficient 2 | Exhaust Orifice Size | Valve Type | Minimum Fluid Temperature | Coil Type | Voltage (V) | Seal Material | Mechanical Option | Power (Watts) | Orifice Main (inch) | Flow Factor Main (Cv) | Maximum Pressure Differential (psi) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 71315SN2EN00N0C111P3 | Quote Required | $185.78/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 250 psi (AC) | 3/64 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | ||
| 71315SN2ENJ1N0C111C1 | Quote Required | $196.31/each | EA | 12.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 250 psi (DC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | ||
| 71315SN2ENJ1N0C111C2 | Quote Required | $197.92/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 250 psi (DC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/64 | 0.062 | 250 psi (DC) | ||
| 71315SN2ENJ1N0C111P3 | Quote Required | 1 Limited Stock | $208.20/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.062 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 250 psi (AC) | 3/64 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/64 | 0.062 | 250 psi (AC) | |
| 71315SN2GN00N0C111P3 | Quote Required | $185.78/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | ||
| 71315SN2GN00N0H111C2 | Quote Required | $262.91/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | No Option | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2GN00N0H111P3 | Quote Required | $263.18/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | ||
| 71315SN2GNJ1N0C111C2 | Quote Required | 1 Limited Stock | $205.46/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | |
| 71315SN2GNJ1N0C111P3 | Quote Required | $198.42/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | ||
| 71315SN2GNJ1N0H111C1 | Quote Required | $274.30/each | EA | 12.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 12 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2GNJ1N0H111C2 | Quote Required | 10 In Stock | $274.24/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 7 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | NBR | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | |
| 71315SN2GNJ1N0H111P3 | Quote Required | 9 In Stock | $274.47/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.095 Cv | Direct Acting | NBR | 200 psi (AC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/16 | 0.11 | 200 psi (AC) | |
| 71315SN2GVJ1N0H111C2 | Quote Required | $284.51/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.11 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.095 Cv | Direct Acting | FKM | 200 psi (DC) | 1/16 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 1/16 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | FKM | Exhaust Adapter Nut | 10 Watt (DC) | 1/16 | 0.11 | 200 psi (DC) | ||
| 71315SN2KN00N0C111P3 | Quote Required | $185.78/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 125 psi (AC) | 3/32 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | ||
| 71315SN2KNJ1N0C111C2 | Quote Required | 5 In Stock | $207.70/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | 125 psi (DC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | |
| 71315SN2KNJ1N0C111P3 | Quote Required | 7 In Stock | $206.32/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 125 psi (AC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 3/32 | 0.17 | 125 psi (AC) | |
| 71315SN2KNJ1N0H111C2 | Quote Required | 8 In Stock | $274.12/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.17 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | NEMA 9 | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | 125 psi (DC) | 3/32 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 7, 9 | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 3/32 | 0.17 | 125 psi (DC) | |
| 71315SN2MN00N0C111P3 | Quote Required | $186.17/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.23 Cv | Liquids and Gases | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | 90 psi (AC) | 1/8 inch | Fluid Control Division | No Option | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | No Option | 10 Watt (AC) | 1/8 | 0.23 | 90 psi (AC) | ||
| 71315SN2VNJ1N0C111C2 | Quote Required | $191.79/each | EA | 24.0 VDC | Stainless Steel | 0 psi | 1/4 inch | 0.67 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (DC) | 0.17 Cv | Direct Acting | NBR | n/a | 1/4 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 24 VDC | NBR | Exhaust Adapter Nut | 10 Watt (DC) | 1/4 | 0.67 | n/a (VAC) | ||
| 71315SN2VNJ1N0C111P3 | Quote Required | $192.00/each | EA | 110/50-120/60 | Stainless Steel | 0 psi | 1/4 inch | 0.67 Cv | General Purpose for Air | 3 | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | NEMA 4X | NPT | 185 °F | 7000 Series | n/a | 10 W (AC) | 0.17 Cv | Direct Acting | NBR | n/a | 1/4 inch | Fluid Control Division | Exhaust Adapter Nut | Normally Closed (NC) | n/a | 3/32 inch | 3-Way | 0 °F | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | NBR | Exhaust Adapter Nut | 10 Watt (AC) | 1/4 | 0.67 | n/a (VAC) |
