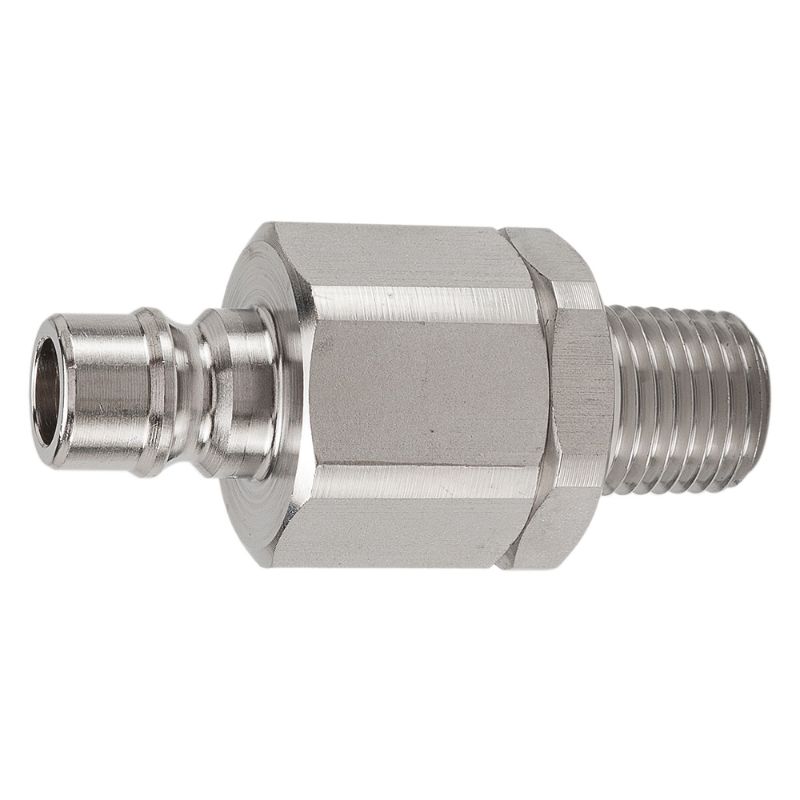

Parker SVHN6-6M - General Purpose, Hydraulic Quick Couplings - H Series

General purpose, snap-tite design quick couplings for applications where fluid lines up to 4" require fast and easy connection and disconnection. Many sizes, ports and material options.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. SVHN6-6M

$125.38

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	250 °F
Dimensional Weight	0.05460431654676258 lb	Seal Material	Nitrile
Plating Type	n/a	Application	General Purpose
Product Type	Manual Connect	Valve Type	Poppet
Minimum Operating Temperature	-40 °F	Division	Quick Coupling Division
Hex Size	1 inch	Body Material	Stainless Steel
Connection Thread Size (inch)	3/8 - 18	Connection Type	Male NPT
Body Size (inch)	3/8	Body Material	316 Stainless Steel
Maximum Operating Pressure	4000	Valve Type	Poppet
Coupling Half	Male Nipple
