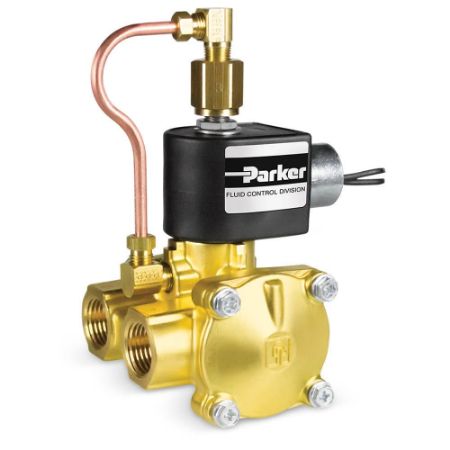

Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 3-Way Normally Closed, Direct Acting 1/2" NPT Solenoid Valves are used in a wide variety of applications ideally suited for low to medium pressure applications that do not require a minimum operating pressure differential. Ideally suited for general purpose air, liquids and gases, these valves are available in brass and stainless steel construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Single acting spring return cylinder control
• Selection or diversion of process media
• HVAC damper control
• Instrumentation Equipment
• Pneumatic positioning
• Automatic dispensing equipment
• Gas sampling
• Small compressors
• Water treatment
• Air dryers
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Textile and Dry Cleaning Equipment
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | Main Flow Coefficient | Input Voltage | Body Material | Seal Material | Exhaust Flow Coefficient | Power Consumption | Port Type | Main Orifice Size | Actuation Type | Maximum Pressure Differential | Maximum Fluid Temperature | Minimum Fluid Temperature | Function | Valve Type | Exhaust Orifice Size | Additional Options | Orifice 2 Size | Product Series | Flow Coefficient 2 | Media | Coil Specifications Met | Port Size | Number of Ports | Minimum Pressure Differential | Division | Coil Type | Coil Type | Voltage (V) | Power (Watts) | Maximum Pressure Differential (psi) | Mechanical Option | Orifice Main (inch) | Flow Factor Main (Cv) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73312BN4UNJ0N0C111P3 | Quote Required | $637.37/each | 3.6 Cv | 110/50-120/60 | Brass | NBR | n/a | 10 W (AC) | NPT | 1/2 inch | Manual | 180 psi (AC) | 185 °F | 0 °F | Normally Closed (NC) | 3-Way | n/a | Exhaust Return Pipe | n/a | 7000 Series | n/a | General Purpose for Air | NEMA 4X | 1/2 inch | 3 | 10 psi | Fluid Control Division | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X | 110/50-120/60 | 10 Watt (AC) | 180 psi (AC) | Exhaust Return Pipe | 1/2 | 3.6 |
