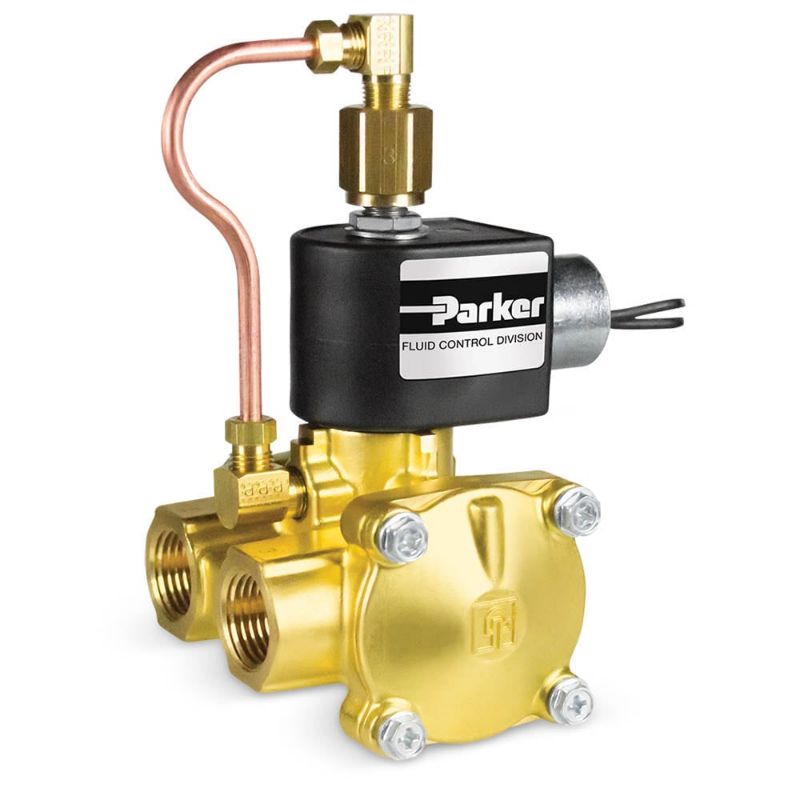

Parker 73312BN4UNJ0N0C111P3 - Parker 3-Way Normally Closed, 1/2" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 1/2" NPT Solenoid Valves provide operating pressures up to 4.0 psi and flow factors up to 180 CV's. They offer a brass body, multiple mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73312BN4UNJ0N0C111P3

$637.37/each

Products specifications

Attribute name	Attribute value
Main Flow Coefficient	3.6 Cv	Input Voltage	110/50-120/60
Body Material	Brass	Seal Material	NBR
Exhaust Flow Coefficient	n/a	Power Consumption	10 W (AC)
Port Type	NPT	Main Orifice Size	1/2 inch
Actuation Type	Manual	Maximum Pressure Differential	180 psi (AC)
Maximum Fluid Temperature	185 °F	Minimum Fluid Temperature	0 °F
Function	Normally Closed (NC)	Valve Type	3-Way
Exhaust Orifice Size	n/a	Additional Options	Exhaust Return Pipe
Orifice 2 Size	n/a	Product Series	7000 Series
Flow Coefficient 2	n/a	Media	General Purpose for Air
Coil Specifications Met	NEMA 4X	Port Size	1/2 inch
Number of Ports	3	Minimum Pressure Differential	10 psi
Division	Fluid Control Division	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	110/50-120/60
Power (Watts)	10 Watt (AC)	Maximum Pressure Differential (psi)	180 psi (AC)
Mechanical Option	Exhaust Return Pipe	Orifice Main (inch)	1/2
Flow Factor Main (Cv)	3.6
