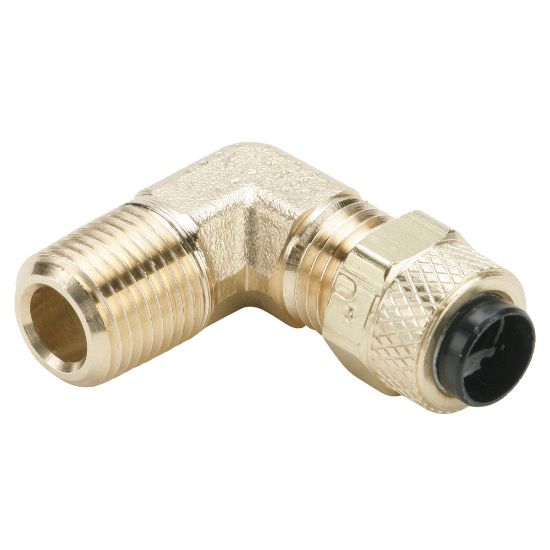

Parker 169P-4-1 - Brass Compression Fittings for Thermoplastic and Soft Metal Tubing - Poly-Tite.

Parker's Poly-Tite fittings offer an acetal copolymer sleeve that has superior resilience to resist creeping and stress caused from compression.

AFP Availability:	Quote Required
Partner Available:	13 In Stock

Brand Parker

Part No. 169P-4-1

$15.66/each

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Temperature	65 °C
Maximum Operating Pressure	150 psi	Nut Material	Brass
Application	Dental, Packaging, Machine tool, Car wash	Minimum Operating Temperature	-17 °C
Tube Material	Polyethylene, Nylon, Polypropylene, Vinyl	Sleeve Material	Brass, Acetal Copolymer
Shape	90° Elbow	Connection 2 Tube O.D. (inch)	na
Connection 1 Style	Compression	Connection 1 Tube O.D. (inch)	1/4
Style	Tube to Pipe	Connection 2 Thread Size (inch)	1/16
Connection 2 Style	Male Pipe

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)
