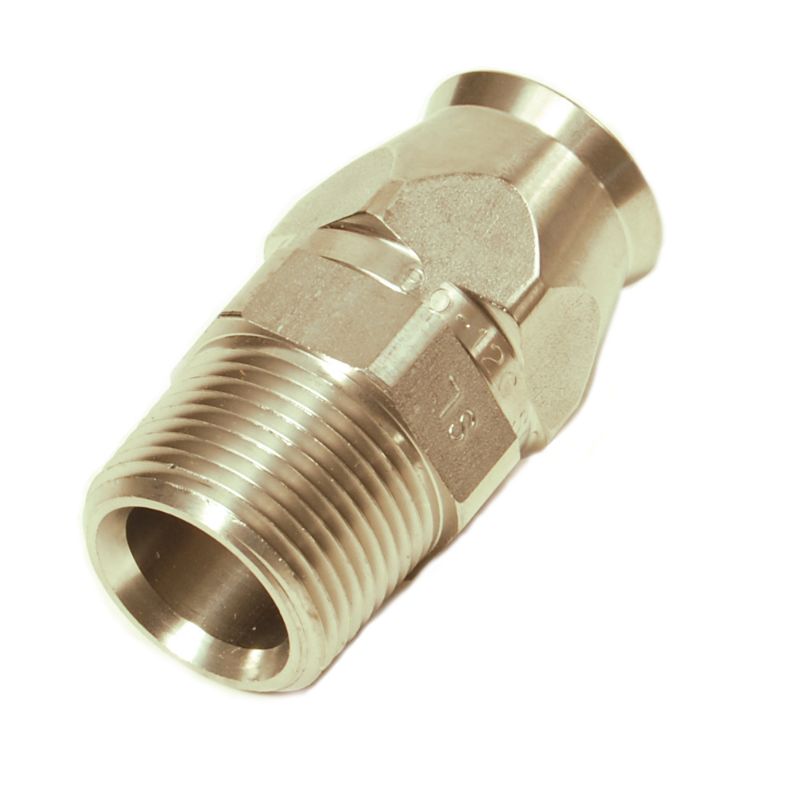

Parker 20190-12-12 - Field Attachable Fittings for PTFE Hose - 90 Series

Name: Parker 20190-12-12 - Field Attachable Fittings for PTFE Hose - 90 Series
SKU: 20190-12-12
Price: 39.88 USD
Availability: InStock

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

AFP Availability:

6 In Stock

Norfolk, VA	4
North Chesterfield, VA	2

Partner Available:

72 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 20190-12-12

$39.88/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	Connection Length	1-9/16 inch Cut-off allowance (see drawing legend B)
Connection 1 Size	15.9 mm	Hex Size	1-1/8 inch (see drawing legend H)
Connection 2 Type	Male	Body Material	Steel (Socket)
Division	Parflex Division	Product Type	Hose Fittings
Application	Fluid Control	Shape	Straight
Connection 1 Type	Hose	Specifications Met	n/a
Hex Size 1	1-1/8 inch (see drawing legend J)	Tube Outside Diameter	n/a
Brand	Parker	Maximum Operating Pressure	20.7 MPa
Industry	Healthcare & Life Sciences	Product Series	90
Dimensional Weight	0.0567 lb	For Fluid Type	Oil
Division	Parflex Division	Connection 2 Size	3/4"-14 inch Thread
Fitting Length	57 mm	Configuration	Hose to Port
Product Style	Male NPTF Pipe - Rigid - Straight	Hose I.D. (inch)	0.625"
Connection 2 Size	3/4"-14	Length (inch)	2.26"
