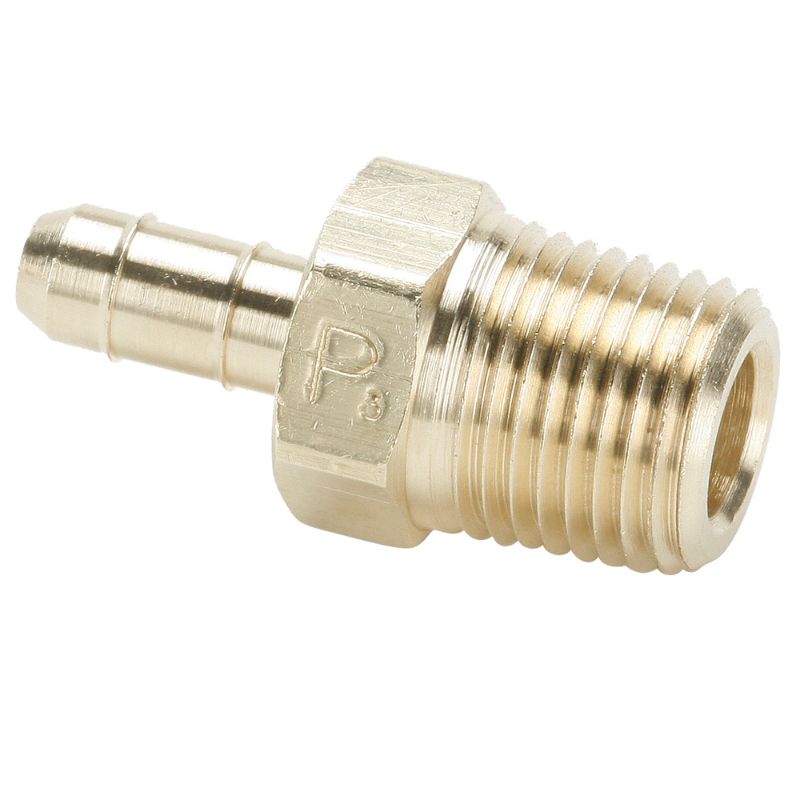

Parker 28-4-10X32 - Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb

Parker's Dubl-barb push-on hose barb is a compact one piece fitting for a quick, economical way to connect polyethylene tubing.

Availability:	Quote Required
Partner Available:	4077 In Stock

Brand Parker

Part No. 28-4-10X32

$3.09

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Body Material	Brass	Maximum Operating Pressure	150 psi
Minimum Operating Temperature	-65 °F	Dimensional Weight	0.05518884892086331 lb
Tube Material	Polyethylene	Maximum Operating Temperature	90 °F
Application	Industrial Controls	Connection 3 Style	na
Connection 3 Thread Size (inch)	na	Connection 2 Tube O.D. (inch)	na
Shape	Connector	Connection 1 Style	Barb
Connection 1 Tube O.D. (inch)	1/4	Style	Tube to Pipe
Connection 2 Style	UNF	Connection 2 Thread Size (inch)	10-32
