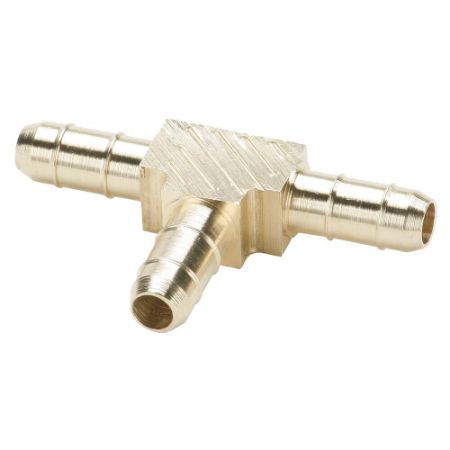

Brass Pneumatic Hose Barbs for Tubing, Dubl-Barb
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's economical, one piece, Dubl-Barb® fittings are designed for quick assembly with polyethylene tubing without the use of a clamp. Because of the many available variations in qualities of polyethylene tubing, Dubl-Barb® fittings are recommended for use with Parker Parflex® polyethylene tubing (or an equal grade). Parker Parflex® tubing is highly resistant to environmental stress cracking which is necessary for long life when coupled with Dubl-Barb fittings. Assembly is simple, just cut tube squarely and push tube over the two barbs.
Use with Parker Parflex Division polyethylene tubing.
Markets:
• Pneumatic
• Environmental control
Features/Benefits
• All brass construction
• One piece
• Compact
• Excellent vibration resistance
• No clamp required
Applications:
• Climate control circuits
• Pneumatic systems
• Humidifiers
• Filters
• Test apparatus
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Dimensional Weight | Division | Maximum Operating Temperature | Body Material | Minimum Operating Temperature | Tube Material | Maximum Operating Pressure | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 2 Style | Shape | Connection 2 Thread Size (inch) | Connection 2 Tube O.D. (inch) | Connection 1 Style | Connection 1 Tube O.D. (inch) | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20-4 | 3 In Stock | 65 In Stock | $2.08/each | EA | 0.05518884892086331 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 10 bar | na | na | na | Plug | na | na | Barb | 1/4 | Tube | |
| 20-6 | 5 In Stock | 69 In Stock | $3.65/each | EA | 0.05518884892086331 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 10 bar | na | na | na | Plug | na | na | Barb | 3/8 | Tube | |
| 20-8 | 28 In Stock | Quote Required | $5.59/each | EA | 0.05518884892086331 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 10 bar | na | na | na | Plug | na | na | Barb | 1/2 | Tube | |
| 22-4 | 9 In Stock | 807 In Stock | $2.35/each | EA | 0.054433633093525176 lb | Fluid System Connectors Division | 32 °C | Brass | -65 °F | Polyethylene | 10 bar | na | na | Barb | Union | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 224-4 | 24 In Stock | 4100 In Stock | $5.69/each | EA | 0.028406025179856114 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 150 psi | na | na | Barb | Tee | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 22-4-5/32 | 16 In Stock | 202 In Stock | $4.62/each | EA | 0.0683453237410072 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 150 psi | na | na | Barb | Union | na | 5/32 | Barb | 1/4 | Tube to Tube | |
| 224-5/32 | 10 In Stock | 215 In Stock | $8.46/each | EA | 0.027594424460431654 lb | Fluid System Connectors Division | 32 °C | Brass | -53 °C | Polyethylene | 10 bar | na | na | Barb | Tee | na | 5/32 | Barb | 5/32 | Tube to Tube | |
| 22-4-6 | 13 In Stock | 417 In Stock | $3.85/each | EA | 0.05681205035971223 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 150 psi | na | na | Barb | Union | na | 3/8 | Barb | 1/4 | Tube to Tube | |
| 224-6 | 92 In Stock | 2350 In Stock | $6.40/each | EA | 0.028406025179856114 | Fluid System Connectors Division | 90 | Brass | -65 | Polyethylene | 150 | na | na | Barb | Tee | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 224-6-6-4 | 2 Limited Stock | 361 In Stock | $6.02/each | EA | 0.028705035971223022 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 10 bar | na | na | Barb | Tee | na | 1/4 | Barb | 3/8 | Tube to Tube | |
| 22-4-8 | 25 In Stock | 110 In Stock | $6.72/each | EA | 0.11037769784172662 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 150 psi | na | na | Barb | Union | na | 1/2 | Barb | 1/4 | Tube to Tube | |
| 224-8 | Quote Required | 84 In Stock | $10.53/each | EA | 0.05681205035971223 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 150 psi | na | na | Barb | Tee | na | 1/2 | Barb | 1/2 | Tube to Tube | |
| 224-8-8-4 | 5 In Stock | 50 In Stock | $12.08/each | EA | 0.054433633093525176 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 150 psi | na | na | Barb | Tee | na | 1/4 | Barb | 1/2 | Tube to Tube | |
| 22-5/32 | 21 In Stock | 130 In Stock | $3.21/each | EA | 0.05518884892086331 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 150 psi | na | na | Barb | Union | na | 5/32 | Barb | 5/32 | Tube to Tube | |
| 225-4-4 | 46 In Stock | 2792 In Stock | $4.46/each | EA | 0.027594424460431654 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 10 bar | na | na | Barb | 90° Elbow | na | 1/4 | Barb | 1/4 | Tube to Tube | |
| 225-6-6 | 3 In Stock | 563 In Stock | $7.76/each | EA | 0.027338129496402876 lb | Fluid System Connectors Division | 32 °C | Brass | -65 °F | Polyethylene | 10 bar | na | na | Barb | 90° Elbow | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 225-8-8 | 28 In Stock | 49 In Stock | $11.65/each | EA | Fluid System Connectors Division | 32 °C | Brass | -65 °F | Polyethylene | 150 psi | na | na | Barb | 90° Elbow | na | 1/2 | Barb | 1/2 | Tube to Tube | ||
| 22-6 | 32 In Stock | 241 In Stock | $3.52/each | EA | 0.06766187050359712 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 10 bar | na | na | Barb | Union | na | 3/8 | Barb | 3/8 | Tube to Tube | |
| 22-6-8 | 4 In Stock | 1601 In Stock | $5.38/each | EA | 0.11618705035971222 lb | Fluid System Connectors Division | 90 °F | Brass | -65 °F | Polyethylene | 10 bar | na | na | Barb | Union | na | 1/2 | Barb | 3/8 | Tube to Tube | |
| 22-8 | Quote Required | 84 In Stock | $5.68/each | EA | 0.10886726618705035 lb | Fluid System Connectors Division | 90 °F | Brass | -53 °C | Polyethylene | 10 bar | na | na | Barb | Union | na | 1/2 | Barb | 1/2 | Tube to Tube |
