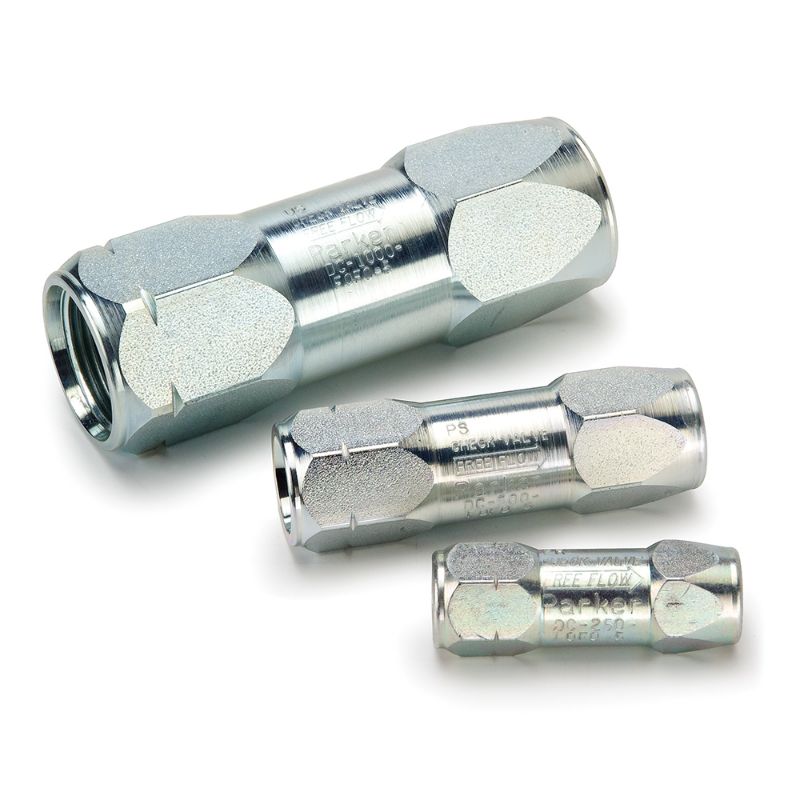

Parker DC-1000-FOFO-5 - Hard Seat,Hydraulic In Line Check Valves - DC Series

Name: Parker DC-1000-FOFO-5 - Hard Seat,Hydraulic In Line Check Valves - DC Series
SKU: DC-1000-FOFO-5
Price: 148.64 USD
Availability: InStock

Parker's, in line check valves are one way flow control devices used primarily in hydraulic systems to eliminate potential damage caused by fluid back pressure.

AFP Availability:

1 Limited Stock

Summerville, SC

Partner Available:

4 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. DC-1000-FOFO-5

$148.64/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Mounting Type	Threaded
Minimum Operating Temperature	250 °F	Maximum Flow Rate	N/A
Body Material	Steel	Seat Type	Metal seal
Actuation Type	Mechanical	Seal Material	Metal
Maximum Operating Pressure	3000 psi	Connection Size	1.312 - 12 UN
Flow Direction	N/A	Division	Quick Coupling Division
Configuration	N/A	Connection Type	Female ORB to Female ORB
Maximum Operating Temperature	-40 °F	Cracking Pressure (psi)	5
Outlet Port Size (inch)	1 5/16 - 12 UN	Outlet Port Connection Type	Female SAE O-ring Straight Thread
Inlet Port Connection Type	Female SAE O-ring Straight Thread	Body Size (inch)	1
Inlet Port Size (inch)	1 5/16 - 12 UN
