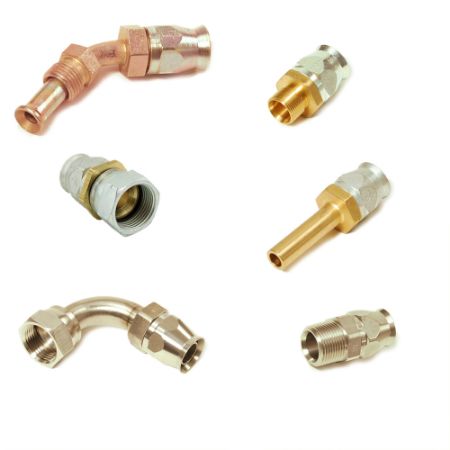

Field Attachable Fittings for PTFE Hose - 90 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 90 Series fittings are used with 919 and 919B PTFE hoses from the Parflex division. Unlike crimp fittings, Parker's Field Attachable Fittings allow customers the convenience of making assemblies in the field with the use of a vice rather than a crimper. This series also includes fitting components to reduce inventory or replace part of the fitting when required.
Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
Read More...Markets:
• Industrial
• Air & Gas compressors
• Packaging machinery
• Printing and marking equipment
Features:
• No crimper needed for installation
Applications:
• Chemical transfer lines
• General hydraulics
• Compressed air/gases
• Adhesive dispensing
• Coolant lines
| Action | Part No. | Availability | Partner Available | Price | UOM | Body Material | Specifications Met | Division | Brand | Shape | Coating | Division | Hex Size | Industry | Hex Size 1 | Technology | Application | Product Type | Configuration | Fitting Length | For Fluid Type | Product Series | Connection 1 Size | Connection 1 Type | Connection 2 Size | Connection 2 Type | Connection Length | Tube Outside Diameter | Maximum Operating Pressure | Length (inch) | Product Style | Hose I.D. (inch) | Dimensional Weight | Connection 2 Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 090-10B | Quote Required | 1 Limited Stock | $1.68/each | EA | Brass | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | n/a | Transportation | n/a | Fluid & Gas Handling | Semiconductor | Hose Fittings | Hose to Port | n/a | Hydraulic Fluids | 90 | -10 (Size) | Hose | n/a | Replacement Ferrule | n/a Cut-off allowance (see drawing legend B) | n/a | 3000 psi (Dependent on hose) | n/a | Replacement Ferrule | 0.5" | |||
| 090-12B | Quote Required | 1 Limited Stock | TBD | EA | Brass | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | n/a | Transportation | n/a | Fluid & Gas Handling | Semiconductor | Hose Fittings | Hose to Port | n/a | Hydraulic Fluids | 90 | -12 (Size) | Hose | n/a | Replacement Ferrule | n/a Cut-off allowance (see drawing legend B) | n/a | 3000 psi (Dependent on hose) | n/a | Replacement Ferrule | 0.625" | |||
| 20190-12-12 | 6 In Stock | 72 In Stock | $39.88/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-1/8 inch (see drawing legend H) | Healthcare & Life Sciences | 1-1/8 inch (see drawing legend J) | Fluid & Gas Handling | Fluid Control | Hose Fittings | Hose to Port | 57 mm | Oil | 90 | 15.9 mm | Hose | 3/4"-14 inch Thread | Male | 1-9/16 inch Cut-off allowance (see drawing legend B) | n/a | 20.7 MPa | 2.26" | Male NPTF Pipe - Rigid - Straight | 0.625" | 0.0567 lb | 3/4"-14 | |
| 20190-16-16 | 3 In Stock | 32 In Stock | $62.10/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-3/8 inch (see drawing legend H) | Semiconductor | 1-3/8 inch (see drawing legend J) | Fluid & Gas Handling | Medical | Hose Fittings | Hose to Port | 62 mm | Pharmaceutical Fluids | 90 | 22 mm | Hose | 1"-11-1/2 inch Thread | Rigid | 54 mm | n/a | 3000 psi (Dependent on hose) | 2.46" | Male NPTF Pipe - Rigid - Straight | 0.875" | 0.1029 lb | 1"-11-1/2 | |
| 20190-2-4 | Quote Required | 28 In Stock | $19.61/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 9/16 inch (see drawing legend H) | Food & Beverage | 9/16 inch (see drawing legend J) | Fluid & Gas Handling | Hydraulics | Hose Fittings | Hose to Port | 1.33 inch (see drawing legend A) | Chemicals | 90 | -4 (Size) | Hose | 1/8"-27 inch Thread | Male | 7/8 inch Cut-off allowance (see drawing legend B) | n/a | 207 bar | 1.33" | Male NPTF Pipe - Rigid - Straight | 0.188" | 0.0104 lb | 1/8"-27 | |
| 20190-4-4 | Quote Required | $21.61/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 9/16 inch (see drawing legend H) | Transportation | 9/16 inch (see drawing legend J) | Fluid & Gas Handling | Instrumentation | Hose Fittings | Hose to Port | 40 mm | Gases | 90 | 4.8 mm | Hose | 1/4"-18 inch Thread | Rigid | 1-1/16 inch Cut-off allowance (see drawing legend B) | n/a | 20.7 MPa | 1.58" | Male NPTF Pipe - Rigid - Straight | 0.188" | 0.0106 lb | 1/4"-18 | ||
| 20190-4-5 | Quote Required | 6 In Stock | $30.39/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 5/8 inch (see drawing legend H) | Food & Beverage | 5/8 inch (see drawing legend J) | Fluid & Gas Handling | General Industrial | Hose Fittings | Hose to Port | 42 mm | Oil | 90 | 6.35 mm | Hose | 1/4"-18 inch Thread | Rigid | 64 mm | n/a | 207 bar | 1.66" | Male NPTF Pipe - Rigid - Straight | 0.25" | 0.0106 lb | 1/4"-18 | |
| 20190-4-6 | Quote Required | 7 In Stock | $22.26/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 11/16 inch (see drawing legend H) | Food & Beverage | 11/16 inch (see drawing legend J) | Fluid & Gas Handling | Instrumentation | Hose Fittings | Hose to Port | 1.66 inch (see drawing legend A) | Oil | 90 | 7.9 mm | Hose | 1/4"-18 inch Thread | Rigid | 76 mm | n/a | 207 bar | 1.66" | Male NPTF Pipe - Rigid - Straight | 0.313" | 0.0104 lb | 1/4"-18 | |
| 20190-6-6 | 9 In Stock | 81 In Stock | $28.70/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 11/16 inch (see drawing legend H) | Semiconductor | 11/16 inch (see drawing legend J) | Fluid & Gas Handling | Pneumatics | Hose Fittings | Hose to Port | 42 mm | Steam | 90 | 7.9 mm | Hose | 3/8"-18 inch Thread | Male | 40 mm | n/a | 20.7 MPa | 1.66" | Male NPTF Pipe - Rigid - Straight | 0.313" | 0.0107 lb | 3/8"-18 | |
| 20190-6-8 | Quote Required | 99 In Stock | $29.22/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 7/8 inch (see drawing legend H) | Transportation | 7/8 inch (see drawing legend J) | Fluid & Gas Handling | Pneumatics | Hose Fittings | Hose to Port | 1.77 inch (see drawing legend A) | Steam | 90 | -8 (Size) | Hose | 3/8"-18 inch Thread | Male | 42 mm | n/a | 20.7 MPa | 1.77" | Male NPTF Pipe - Rigid - Straight | 0.406" | 0.0235 lb | 3/8"-18 | |
| 20190-8-10 | 2 Limited Stock | 7 In Stock | $34.66/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1 inch (see drawing legend H) | Food & Beverage | 1 inch (see drawing legend J) | Fluid & Gas Handling | Pneumatics | Hose Fittings | Hose to Port | 54 mm | Oil | 90 | 1/2 inch Hose I.D. | Hose | 1/2"-14 inch Thread | Male | 44 mm | n/a | 207 bar | 2.13" | Male NPTF Pipe - Rigid - Straight | 0.5" | 0.0483 lb | 1/2"-14 | |
| 20190-8-8 | 3 In Stock | 38 In Stock | $29.06/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 7/8 inch (see drawing legend H) | Industrial | 7/8 inch (see drawing legend J) | Fluid & Gas Handling | Fluid Control | Hose Fittings | Hose to Port | 50 mm | Hydraulic Fluids | 90 | -8 (Size) | Hose | 1/2"-14 inch Thread | Rigid | 53 mm | n/a | 3000 psi (Dependent on hose) | 1.97" | Male NPTF Pipe - Rigid - Straight | 0.406" | 0.0235 lb | 1/2"-14 | |
| 20690-10-10 | 62 In Stock | 122 In Stock | $32.36/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1 inch (see drawing legend H) | Transportation | 1 inch (see drawing legend J) | Fluid & Gas Handling | Medical | Hose Fittings | Hose to Port | 2.22 inch (see drawing legend A) | Pharmaceutical Fluids | 90 | -10 (Size) | Hose | 7/8"-14 inch Thread | Swivel | 1-1/2 inch Cut-off allowance (see drawing legend B) | n/a | 207 bar | 2.22" | Female JIC 37° - Swivel - Straight | 0.5" | 0.0412 lb | 7/8"-14 | |
| 20690-12-12 | Quote Required | 35 In Stock | $44.31/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-1/4 inch (see drawing legend H) | Food & Beverage | 1-1/4 inch (see drawing legend J) | Fluid & Gas Handling | Fluid Control | Hose Fittings | Hose to Port | 59 mm | Oil | 90 | 15.9 mm | Hose | 1-1/16"-12 inch Thread | Female | 59 mm | n/a | 207 bar | 2.33" | Female JIC 37° - Swivel - Straight | 0.625" | 0.0764 lb | 1-1/16"-12 | |
| 20690-12-12C | Quote Required | 1 Limited Stock | $294.64/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-1/4 inch (see drawing legend H) | Industrial | 1-1/4 inch (see drawing legend J) | Fluid & Gas Handling | Pneumatics | Hose Fittings | Hose to Port | 2.33 inch (see drawing legend A) | Gases | 90 | -12 (Size) | Hose | 1-1/16"-12 inch Thread | Female | 59 mm | n/a | 3000 psi (Dependent on hose) | 2.33" | Female JIC 37° - Swivel - Straight | 0.625" | 0.0529 lb | 1-1/16"-12 | |
| 20690-16-16 | Quote Required | 10 In Stock | $60.84/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-3/8 inch (see drawing legend H) | Transportation | 1-1/2 inch (see drawing legend J) | Fluid & Gas Handling | Fluid Control | Hose Fittings | Hose to Port | 64 mm | Pharmaceutical Fluids | 90 | -16 (Size) | Hose | 1-5/16"-12 inch Thread | Female | 64 mm | n/a | 207 bar | 2.52" | Female JIC 37° - Swivel - Straight | 0.875" | 0.1029 lb | 1-5/16"-12 | |
| 20690-16-16C | 1 Limited Stock | Quote Required | $379.22/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 1-3/8 inch (see drawing legend H) | Food & Beverage | 1-1/2 inch (see drawing legend J) | Fluid & Gas Handling | Medical | Hose Fittings | Hose to Port | 64 mm | Hydraulic Fluids | 90 | -16 (Size) | Hose | 1-5/16"-12 inch Thread | Swivel | 1-15/16 inch Cut-off allowance (see drawing legend B) | n/a | 20.7 MPa | 2.52" | Female JIC 37° - Swivel - Straight | 0.875" | 0.1177 lb | 1-5/16"-12 | |
| 20690-4-4 | 26 In Stock | 257 In Stock | $16.79/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 9/16 inch (see drawing legend H) | Industrial | 9/16 inch (see drawing legend J) | Fluid & Gas Handling | Instrumentation | Hose Fittings | Hose to Port | 40 mm | Gases | 90 | -4 (Size) | Hose | 7/16"-20 inch Thread | JIC 37° | 1-1/8 inch Cut-off allowance (see drawing legend B) | n/a | 3000 psi (Dependent on hose) | 1.58" | Female JIC 37° - Swivel - Straight | 0.188" | 0.0104 lb | 7/16"-20 | |
| 20690-4-4C | 4 In Stock | 26 In Stock | $99.12/each | EA | Steel (Socket) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 9/16 inch (see drawing legend H) | Semiconductor | 9/16 inch (see drawing legend J) | Fluid & Gas Handling | Fluid Control | Hose Fittings | Hose to Port | 40 mm | Oil | 90 | 3/16 inch Hose I.D. | Hose | 7/16"-20 inch Thread | JIC 37° | 40 mm | n/a | 207 bar | 1.58" | Female JIC 37° - Swivel - Straight | 0.188" | 0.0178 lb | 7/16"-20 | |
| 20690-5-5 | Quote Required | 18 In Stock | $43.51/each | EA | Brass (Nipple and Ferrule) | N/A | Parflex Division | Parker | Straight | Chromium 6 Free-plated | Parflex Division | 5/8 inch (see drawing legend H) | Semiconductor | 5/8 inch (see drawing legend J) | Fluid & Gas Handling | Chemical Transfer | Hose Fittings | Hose to Port | 42 mm | Oil | 90 | -5 (Size) | Hose | 1/2"-20 inch Thread | Swivel | 1-1/8 inch Cut-off allowance (see drawing legend B) | n/a | 20.7 MPa | 1.66" | Female JIC 37° - Swivel - Straight | 0.25" | 0.0106 lb | 1/2"-20 |
