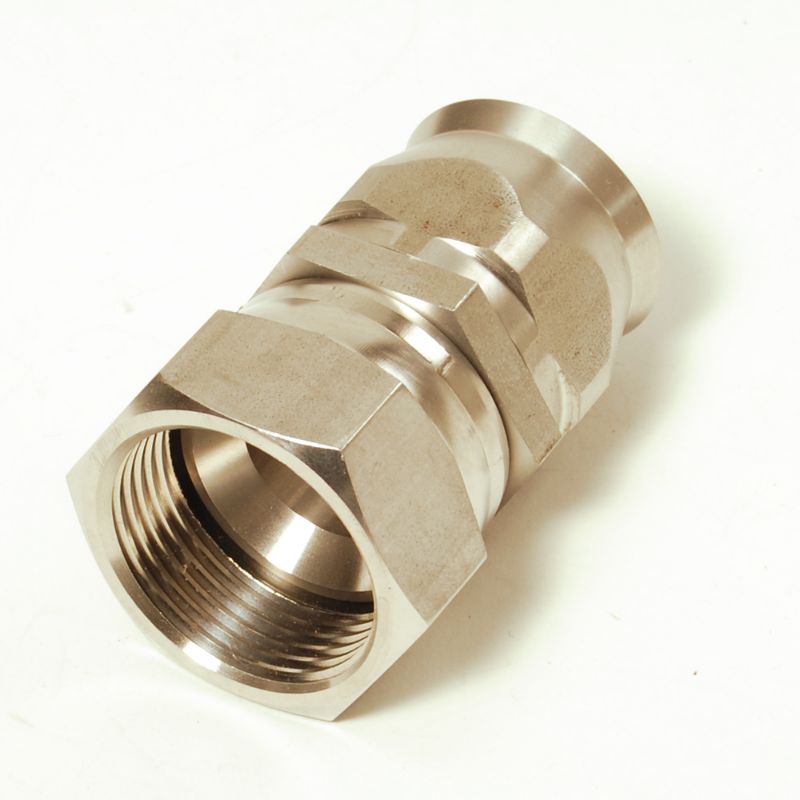

Parker 20690-10-10 - Field Attachable Fittings for PTFE Hose - 90 Series

Name: Parker 20690-10-10 - Field Attachable Fittings for PTFE Hose - 90 Series
SKU: 20690-10-10
Price: 32.36 USD
Availability: InStock

Parker's 90 Series fittings are used with 919/919B PTFE hoses from Parflex division.

AFP Availability:

62 In Stock

North Chesterfield, VA	29
Richmond, VA	25 (Pickup only)
Mooresville, NC	5
Norfolk, VA	3

Partner Available:

135 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 20690-10-10

$32.36/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Technology	Fluid & Gas Handling
Coating	Chromium 6 Free-plated	For Fluid Type	Pharmaceutical Fluids
Division	Parflex Division	Division	Parflex Division
Shape	Straight	Application	Medical
Connection 2 Type	Swivel	Connection Length	1-1/2 inch Cut-off allowance (see drawing legend B)
Connection 1 Size	-10 (Size)	Body Material	Brass (Nipple and Ferrule)
Hex Size	1 inch (see drawing legend H)	Tube Outside Diameter	n/a
Connection 1 Type	Hose	Specifications Met	n/a
Product Type	Hose Fittings	Hex Size 1	1 inch (see drawing legend J)
Dimensional Weight	0.0412 lb	Connection 2 Size	7/8"-14 inch Thread
Configuration	Hose to Port	Fitting Length	2.22 inch (see drawing legend A)
Brand	Parker	Maximum Operating Pressure	207 bar
Industry	Transportation	Product Series	90
Product Style	Female JIC 37° - Swivel - Straight	Hose I.D. (inch)	0.5"
Length (inch)	2.22"	Connection 2 Size	7/8"-14
