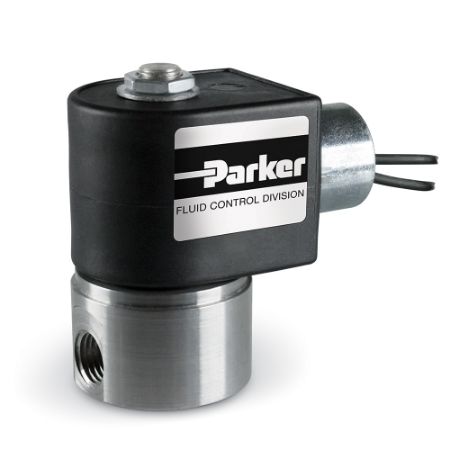

Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 2-Way Normally Closed 1/4" NPT Solenoid Valves are used in a wide variety of applications ideally suited for general purpose air, liquids and gases. These valves are available in stainless steel and brass construction. Coil options are available in 1/2" NPT Conduit and DIN Form A in Class F and H or NEMA 4X, 7 or 9 specification.
Markets:
• Commercial Equipment
• Food & Beverage
• Industrial Automation
• Oil & Gas
• Process Control
• Transportation
Features/ Benefits:
• High Quality Standards of Skinner® and Gold Ring™ Brand
• Modular Design
• Long Life
• Tight Shutoff
Applications:
• Instrumentation Equipment
• Analyzers and Diagnostic Equipment
• Medical and Dental Equipment
• Portable Welding Equipment
• Spraying Equipment
• Lubrication Equipment
• Beverage Dispensing & Vending machines
• Oil Burners
• Humidification and Misting Equipment
• Mobile Fuel Shut Off
• Textile and Dry Cleaning Equipment
• Commercial Dishwashers
• Commercial Laundry and Dryers
• Air Horns
• Pneumatic Fan Clutch
• Irrigation Equipment
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Valve Type | Orifice 2 Size | Minimum Fluid Temperature | Product Series | Flow Coefficient 2 | Function | Port Size | Coil Specifications Met | Media | Minimum Pressure Differential | Coil Type | Number of Ports | Flow Coefficient 1 | Orifice 1 Size | Body Material | Input Voltage | Power Consumption | Seal Material | Actuation Type | Port Type | Maximum Pressure Differential | Maximum Fluid Temperature | Body Material | Coil Type | Voltage (V) | Power (Watts) | Seal Material | Flow Factor 1 (Cv) | Orifice 1 Size (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 04F25C2122C3F4C80 | Quote Required | 12 In Stock | $188.37/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | Gold Ring | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 3 psi | 1/2" Conduit, 18" Leads | 2 | 1.2 Cv | 11/32 inch | Brass | 24.0 VDC | 11.5 W (DC) | NBR | Diaphragm | NPT | 300 psi (DC) | 150 °F | BRASS | 1/2" Conduit, 18" Leads | 24 VDC | 11.5 Watts (DC) | NBR | 1.2 | 11/32 | |
| 04F25C2122CAF4C05 | Quote Required | 14 In Stock | $182.50/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | Gold Ring | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 3 psi | 1/2" Conduit, 18" Leads | 2 | 1.2 Cv | 11/32 inch | Brass | 110/50-120/60 | 6 W (AC) | NBR | Diaphragm | NPT | 300 psi (AC) | 180 °F | BRASS | 1/2" Conduit, 18" Leads | 110/50-120/60 | 6 Watts (AC) | NBR | 1.2 | 11/32 | |
| 71215SN21N00N0C111P3 | Quote Required | $140.86/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | 1/2" Conduit, 18" Leads | 2 | 1.1 Cv | 5/16 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 20 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 110/50-120/60 | 10 Watts (AC) | NBR | 1.1 | 5/16 | ||
| 71215SN21N00N0D100C2 | Quote Required | $130.44/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | DIN Form A | 2 | 1.1 Cv | 5/16 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 3 psi (DC) | 185 °F | Stainless | DIN Form A | 24 VDC | 10 Watts (DC) | NBR | 1.1 | 5/16 | ||
| 71215SN2EN00N0C111C2 | Quote Required | $139.40/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.06 Cv | 3/64 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 450 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | NBR | 0.06 | 3/64 | ||
| 71215SN2KN00N0C111C2 | Quote Required | $140.07/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.18 Cv | 3/32 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 275 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | NBR | 0.18 | 3/32 | ||
| 71215SN2KN00N0C111P3 | Quote Required | $140.34/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.18 Cv | 3/32 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 275 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 110/50-120/60 | 10 Watts (AC) | NBR | 0.18 | 3/32 | ||
| 71215SN2KN00N0D100P3 | Quote Required | $130.17/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | DIN Form A | 2 | 0.18 Cv | 3/32 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 275 psi (AC) | 185 °F | Stainless | DIN Form A | 110/50-120/60 | 10 Watts (AC) | NBR | 0.18 | 3/32 | ||
| 71215SN2MN00N0C111C2 | Quote Required | 4 In Stock | $140.34/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.28 Cv | 1/8 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 150 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | NBR | 0.28 | 1/8 | |
| 71215SN2MN00N0C111P3 | Quote Required | 3 In Stock | $140.76/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.28 Cv | 1/8 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 200 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 110/50-120/60 | 10 Watts (AC) | NBR | 0.28 | 1/8 | |
| 71215SN2MN00N0D100C2 | Quote Required | $130.36/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | DIN Form A | 2 | 0.28 Cv | 1/8 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 150 psi (DC) | 185 °F | Stainless | DIN Form A | 24 VDC | 10 Watts (DC) | NBR | 0.28 | 1/8 | ||
| 71215SN2MV00N0C111C2 | Quote Required | $150.24/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.28 Cv | 1/8 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | FKM | Direct Acting | NPT | 150 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | FKM | 0.28 | 1/8 | ||
| 71215SN2QN00N0C111C2 | Quote Required | $139.41/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.4 Cv | 5/32 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | NBR | Direct Acting | NPT | 60 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | NBR | 0.4 | 5/32 | ||
| 71215SN2QN00N0C111P3 | Quote Required | 99 In Stock | $139.61/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.4 Cv | 5/32 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 110 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 110/50-120/60 | 10 Watts (AC) | NBR | 0.4 | 5/32 | |
| 71215SN2QN00N0D100P3 | Quote Required | 1 Limited Stock | $129.51/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | DIN Form A | 2 | 0.4 Cv | 5/32 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 110 psi (AC) | 185 °F | Stainless | DIN Form A | 110/50-120/60 | 10 Watts (AC) | NBR | 0.4 | 5/32 | |
| 71215SN2SN00N0C111P3 | Quote Required | $139.60/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.5 Cv | 3/16 inch | Stainless Steel | 110/50-120/60 | 10 W (AC) | NBR | Direct Acting | NPT | 80 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 110/50-120/60 | 10 Watts (AC) | NBR | 0.5 | 3/16 | ||
| 71215SN2SN00N0C111Q3 | Quote Required | $139.48/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.5 Cv | 3/16 inch | Stainless Steel | 220/50 to 240/60 | 10 W (AC) | NBR | Direct Acting | NPT | 80 psi (AC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 220/50-240/60 | 10 Watts (AC) | NBR | 0.5 | 3/16 | ||
| 71215SN2VV00N0C111C2 | Quote Required | $150.08/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.75 Cv | 1/4 inch | Stainless Steel | 24.0 VDC | 10 W (DC) | FKM | Direct Acting | NPT | 10.0 psi (DC) | 185 °F | Stainless | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | FKM | 0.75 | 1/4 | ||
| 7121KBN2NV00N0C111C2 | Quote Required | $126.51/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | General Purpose for Air | 0 psi | 1/2" Conduit, 18" Leads | 2 | 0.31 Cv | 1/8 inch | Brass | 24.0 VDC | 10 W (DC) | FKM | Direct Acting | NPT | 125 psi (DC) | 185 °F | BRASS | 1/2" Conduit, 18" Leads | 24 VDC | 10 Watts (DC) | FKM | 0.31 | 1/8 | ||
| 7121KBN2NV00N0D100C2 | Quote Required | $116.45/each | EA | Fluid Control Division | 2-Way | n/a | 0 °F | 7000 Series | n/a | Normally Closed (NC) | 1/4 inch | NEMA 4X | Liquids and Gases | 0 psi | DIN Form A | 2 | 0.31 Cv | 1/8 inch | Brass | 24.0 VDC | 10 W (DC) | FKM | Direct Acting | NPT | 125 psi (DC) | 185 °F | BRASS | DIN Form A | 24 VDC | 10 Watts (DC) | FKM | 0.31 | 1/8 |
