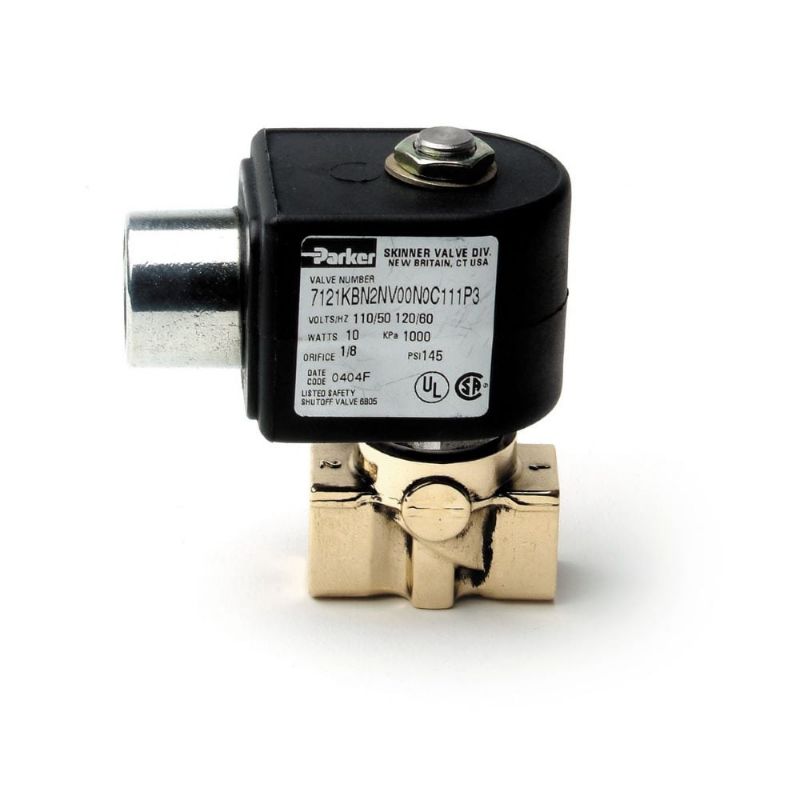

Parker 7121KBN2NV00N0C111C2 - Parker 2-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 600 PSI and flow factors up to 2.5 CV's. They offer multiple body materials, mounting positions and coil options for all general purpose flow control applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 7121KBN2NV00N0C111C2

$126.51/each

Products specifications

Attribute name	Attribute value
UOM	EA	Function	Normally Closed (NC)
Product Series	7000 Series	Orifice 2 Size	n/a
Minimum Fluid Temperature	0 °F	Flow Coefficient 2	n/a
Power Consumption	10 W (DC)	Coil Type	1/2" Conduit, 18" Leads
Number of Ports	2	Valve Type	2-Way
Division	Fluid Control Division	Body Material	Brass
Coil Specifications Met	NEMA 4X	Port Size	1/4 inch
Minimum Pressure Differential	0 psi	Input Voltage	24.0 VDC
Media	General Purpose for Air	Actuation Type	Direct Acting
Seal Material	FKM	Maximum Fluid Temperature	185 °F
Port Type	NPT	Maximum Pressure Differential	125 psi (DC)
Flow Coefficient 1	0.31 Cv	Orifice 1 Size	1/8 inch
Body Material	BRASS	Coil Type	1/2" Conduit, 18" Leads
Voltage (V)	24 VDC	Orifice 1 Size (inch)	1/8
Seal Material	FKM	Power (Watts)	10 Watts (DC)
Flow Factor 1 (Cv)	0.31

Product resources

Literature and Reference Materials

7121K/7122K Installation, Operation & Maintenance Instructions (PDF)
