Mini Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

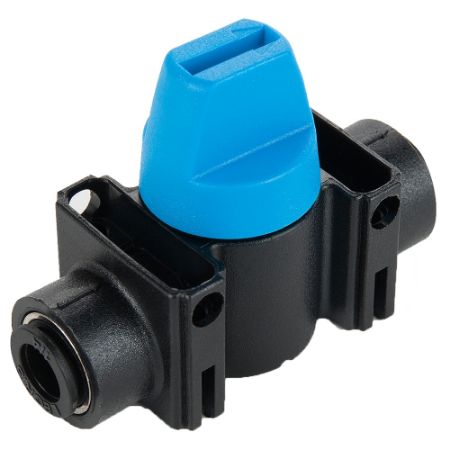

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. Handles are color coded and marked with the corresponding pneumatic symbol, in order to enable immediate identification by the user. With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Use with the following Parker Parflex Division tubing.
• Nylon
• Semi-rigid Nylon
• Polyurethane 90 Durometer Shore A
• Fluoropolymer
Markets:
• Factory/Process Automation
• Packaging
• Petrochemical
• Pneumatics
• Semi-conductor
Features/Benefits:
• Full flow
• Marked with the pneumatic symbol for identification of its function
• Lightweight
• Extremely compact, easy-to-operate lever
• Lever with screwdriver slot to facilitate operation
• Designed for polymer tubing with no tube preparation
• NBR stem seal and o-ring
Applications:
• Machine Tools
• Pneumatic Systems
• Robotics
• Vacuum Lines
• Textile
Read More...Use with the following Parker Parflex Division tubing.
• Nylon
• Semi-rigid Nylon
• Polyurethane 90 Durometer Shore A
• Fluoropolymer
Markets:
• Factory/Process Automation
• Packaging
• Petrochemical
• Pneumatics
• Semi-conductor
Features/Benefits:
• Full flow
• Marked with the pneumatic symbol for identification of its function
• Lightweight
• Extremely compact, easy-to-operate lever
• Lever with screwdriver slot to facilitate operation
• Designed for polymer tubing with no tube preparation
• NBR stem seal and o-ring
Applications:
• Machine Tools
• Pneumatic Systems
• Robotics
• Vacuum Lines
• Textile
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Temperature | Minimum Operating Temperature | Vacuum Pressure Rating | Seal Material | Specifications Met | Maximum Operating Pressure | Gripping Ring Material | Media | Maximum Flow Rate | Shape | Body Material | Actuation Type | Vented | Configuration | Operation Type | Function | Application | Connection Size | Connection Type | Handle Type | Orifice Size | Product Type | Ball Material | Mounting Type | Seat Material | Stem Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MV308-10M-6G | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 10 x G3/8 mm | BSPP X PTC | Nylon | .28 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MV308-12M-8G | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 12 x G1/2 mm | PTC X BSPP | Nylon | .38 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MV308-6M-2G | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 6 x G1/8 mm | PTC X BSPP | Nylon | .16 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MV309-10M | Quote Required | $48.72 | EA | Fluid System Connectors Division | 175 °F | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 10 x 10 mm | PTC | Nylon | .28 | Mini Ball Valve | Brass | Panel | Nylon | Brass | ||
| MV309-12M | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 12 x 12 mm | PTC | Nylon | .35 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MV309-4 | Quote Required | 58 In Stock | $34.49 | EA | Fluid System Connectors Division | 80 °C | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 1/4 x 1/4 inch | PTC | Nylon | .17 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |
| MV309-4M | Quote Required | 3 In Stock | $37.79 | EA | Fluid System Connectors Division | 175 °F | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 4 x 5/32 mm | PTC | Nylon | .10 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |
| MV309-6 | Quote Required | 11 In Stock | $40.25 | EA | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 3/8 x 3/8 inch | PTC | Nylon | .25 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |
| MV309-6M | Quote Required | 8 In Stock | $39.07 | EA | Fluid System Connectors Division | 175 °F | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 6 x 6 mm | PTC | Nylon | .16 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |
| MV309-8M | Quote Required | 44 In Stock | $37.05 | EA | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | No | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 8 x 8 mm | PTC | Nylon | .24 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |
| MVV308-10M-6G | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 10 x G3/8 mm | PTC x NPT | Nylon | .28 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-4-2 | Quote Required | TBD | Fluid System Connectors Division | 175 °F | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 1/4 x 1/8 inch | PTC x NPT | Nylon | .06 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-4-4 | Quote Required | TBD | Fluid System Connectors Division | 175 °F | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 1/4 x 1/4 inch | PTC x NPT | Nylon | .17 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-6-4 | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 3/8 x 1/4 inch | PTC x NPT | Nylon | .17 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-6-6 | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 3/8 x 3/8 inch | PTC x NPT | Nylon | .25 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-6M-2G | Quote Required | TBD | Fluid System Connectors Division | 175 °F | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 6 x G1/8 mm | PTC x NPT | Nylon | .16 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV308-8M-4G | Quote Required | TBD | Fluid System Connectors Division | 175 °F | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Pipe | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 8 x G1/4 mm | PTC x NPT | Nylon | .24 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV309-10M | Quote Required | TBD | Fluid System Connectors Division | 80 °C | -20 °C | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 10 x 10 mm | PTC | Nylon | .28 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV309-12M | Quote Required | TBD | Fluid System Connectors Division | 175 °F | -4 °F | 28 Inch-Hg | NBR | N/A | 10 bar | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 12 x 12 mm | PTC | Nylon | .35 | Mini Ball Valve | Brass | Panel | Nylon | Brass | |||
| MVV309-4 | Quote Required | 1 Limited Stock | $32.77 | EA | Fluid System Connectors Division | 80 °C | -4 °F | 28 Inch-Hg | NBR | N/A | 145 psi | Stainless Steel | Compressed Air | n/a | In-Line | Nylon | Manual | Yes | Tube to Tube | n/a | 2-Way, Normally Open, Normally Closed | Pneumatics,Packaging, Vacuum,Robotics, Textile | 1/4 x 1/4 inch | PTC | Nylon | .17 | Mini Ball Valve | Brass | Panel | Nylon | Brass |
