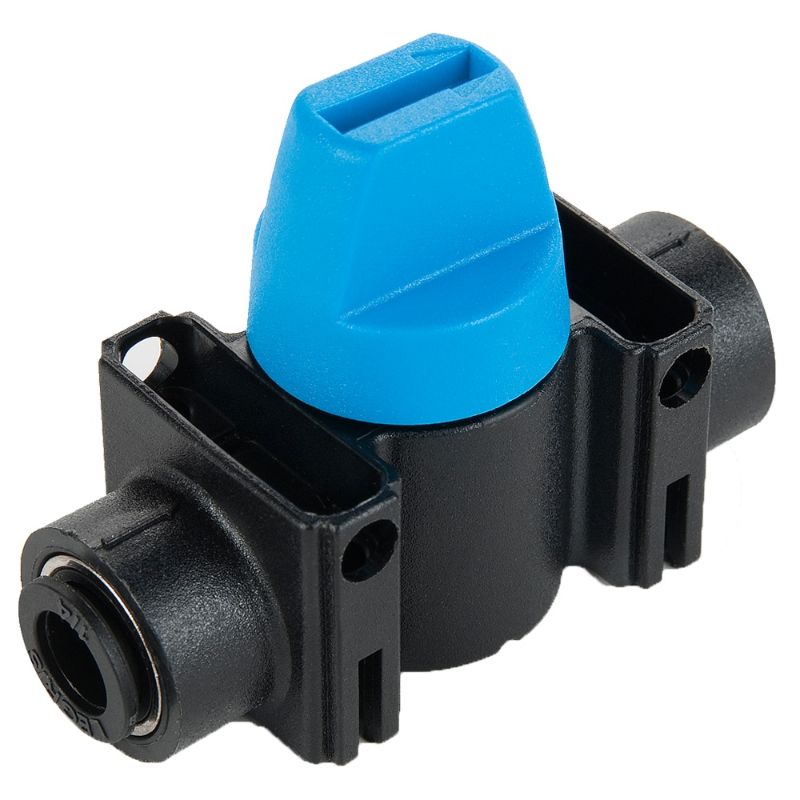

Parker MV309-10M - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. MV309-10M

$48.72

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Fluid System Connectors Division
Minimum Operating Temperature	-4 °F	Vacuum Pressure Rating	28 Inch-Hg
Seal Material	NBR	Specifications Met	N/A
Gripping Ring Material	Stainless Steel	Media	Compressed Air
Maximum Operating Temperature	175 °F	Maximum Flow Rate	n/a
Shape	In-Line	Body Material	Nylon
Maximum Operating Pressure	145 psi	Actuation Type	Manual
Configuration	Tube to Tube	Vented	No
Operation Type	n/a	Function	2-Way, Normally Open, Normally Closed
Application	Pneumatics,Packaging, Vacuum,Robotics, Textile	Connection Size	10 x 10 mm
Connection Type	PTC	Handle Type	Nylon
Orifice Size	.28	Product Type	Mini Ball Valve
Ball Material	Brass	Mounting Type	Panel
Seat Material	Nylon	Stem Material	Brass
